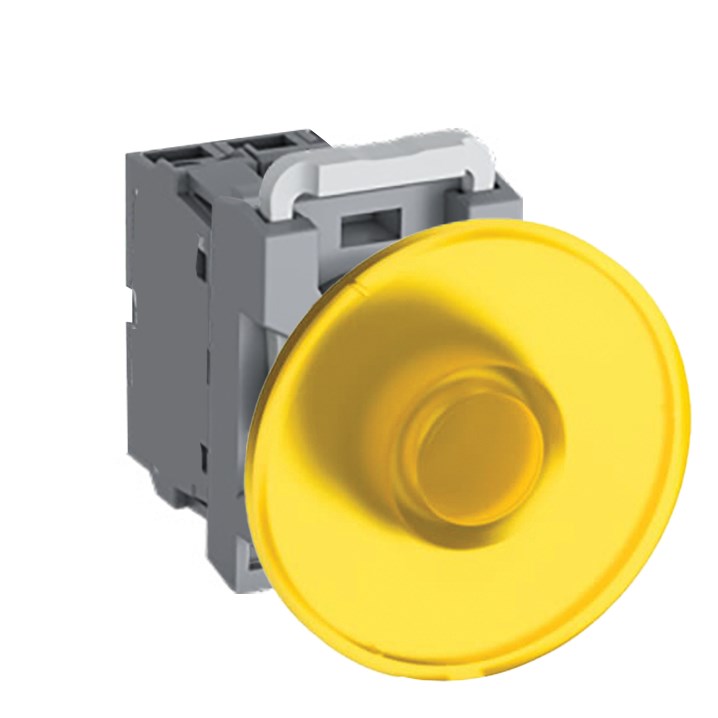

ABB MPMI6Y110 Illuminated Pushbutton Kit 60mm Momentary Yellow 24VAC/DC 1NO

Product Code: MPMI6Y110

  • Operates at 24 VAC/DC with LED illumination
  • Wide temp range: -25 to 70°C
  • High protection: IP66 front, IP20 terminal
  • Conforms to multiple EN and UL standards
  • Momentary function with yellow LED lamp
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
LED Block Rated Voltage 24VAC/DC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom 60mm
Bezel Material Plastic
Colour Yellow
Contact Configuration 1NO
Cutout Size 60 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 60 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Yellow
Lamp Type LED
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
