When choosing components for industrial and commercial applications, reliability and compliance with standards are essential. This non-illuminated mushroom actuator button is designed to meet the rigorous demands of mining, construction, and heavy industry environments. Let’s explore its features to see if it aligns with your technical needs.
First off, this device boasts a robust IP66 degree of protection, making it dust-tight and protected against powerful water jets. Such durability ensures that it can withstand harsh environmental conditions without compromising performance.
The product adheres to several international standards including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No.14 certifications. These approvals confirm its suitability for global markets while assuring safety and compatibility in various operational settings.
Designed to operate efficiently within an ambient temperature range from -30 to 70 degrees Celsius, the button is versatile enough for extreme climates found in Australia’s diverse industrial landscapes.
Its connection type is Faston—known for quick installation and reliable connections—simplifying integration into existing systems or new installations.
With a rated insulation voltage of 690 V and a rated impulse withstand voltage of 4 kV, the actuator provides high electrical endurance necessary for demanding applications. The contact configuration features two normally closed (2NC) contacts which contribute to fail-safe operations by ensuring circuits are interrupted when needed.

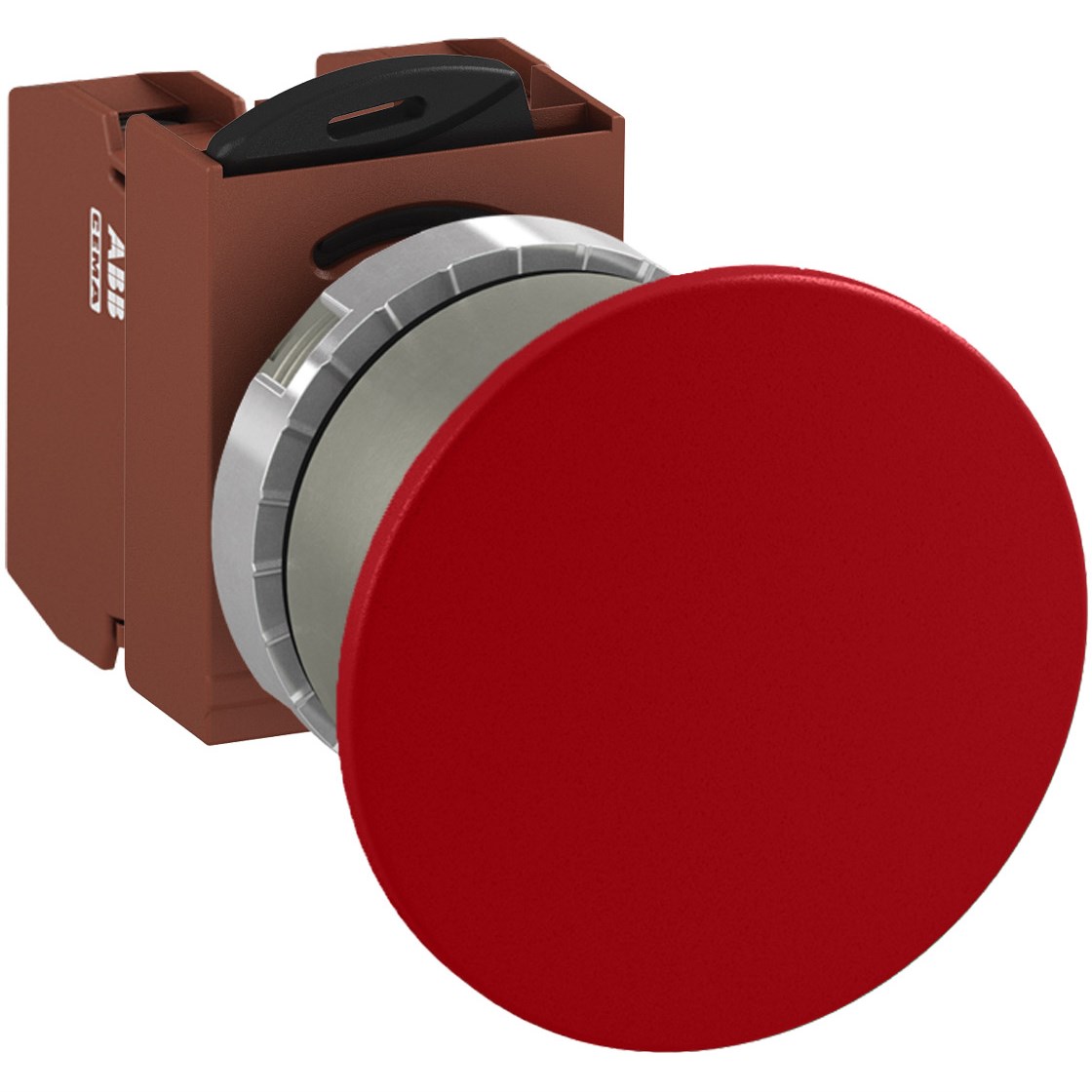

The actuator sports a large red mushroom head with a diameter of 60 mm—a design choice that enhances visibility and accessibility during emergencies or routine operations where quick action is required. Its momentary function means the circuit returns to its normal state once pressure on the button is released—ideal for temporary stop commands or resets in control panels.
Constructed with a metal bezel material, this component promises longevity even under tough mechanical stress or exposure to corrosive elements commonly encountered in heavy industries.
Lastly, both the cutout size and diameter measure at 60 mm ensuring seamless integration into standard panel designs without additional modifications needed—a practical feature saving time during setup or replacements.
In summary, this mushroom actuator button combines rugged construction with compliance across multiple safety standards making it an excellent choice for professionals seeking reliable operation in challenging environments typical of mining or construction sectors.
