When it comes to selecting reliable and robust components for industrial and commercial applications, this non-illuminated mushroom actuator stands out as a dependable choice. Designed with a focus on durability and compliance, it meets rigorous standards that ensure performance in demanding environments.
The actuator features a front degree of protection rated at IP66, providing excellent resistance against dust and water ingress. This makes it suitable for outdoor or harsh indoor conditions where exposure to the elements is a concern. Additionally, the terminal's protection rating of IP20 ensures safety from accidental contact with live parts.
In terms of compliance, this product adheres to multiple international standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9 as well as UL 508 and CSA C22.2 No.14 for North American markets. These certifications underscore its reliability across various regions and applications.
The actuator operates efficiently within an ambient temperature range of -25 to 70 degrees Celsius, making it versatile enough for varied climatic conditions without compromising functionality. It boasts a rated insulation voltage of up to 690 V and can withstand impulse voltages up to 6 kV—ideal for high-voltage applications requiring robust electrical integrity.
The contact configuration includes one normally open (NO) and one normally closed (NC) contact arrangement which allows flexibility in control circuit design. With a rated thermal current capacity of up to 10 A, this device can handle significant power loads while maintaining operational stability.

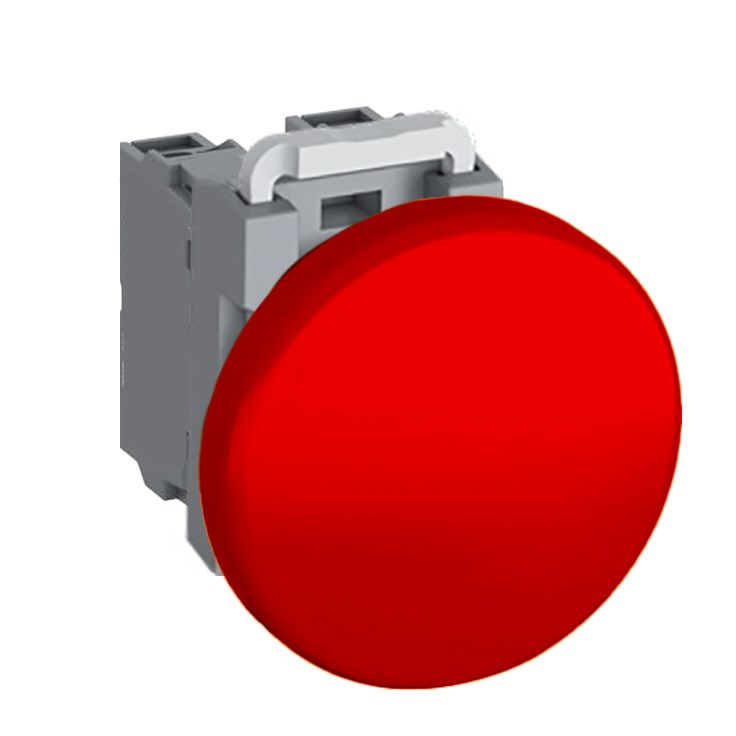

A distinctive feature is its red mushroom-shaped button with a diameter of 60 mm designed for easy operation even in emergency situations where immediate action is required. The bezel material made from plastic ensures lightweight construction without sacrificing strength or durability.
Installation is straightforward thanks to the cutout size matching the button diameter at exactly 60 mm ensuring seamless integration into existing panels or systems. The package includes an operator along with the necessary contact block and holder simplifying setup so you can get your system up and running quickly.
Overall this product offers an ideal balance between technical specifications quality build standards approval ratings all wrapped in user-friendly design tailored specifically towards those seeking reliable solutions within their electrical engineering automation building projects.
