Specifications

Dimensions (mm)	40W x 40D
Reference No.	391060
Thickness (mm)	2.5
Suitable For	Round Conductor
Weight (kg)	0.113
Class (Lightning Current Carrying Capability) (kA)	100/50
Surface Protection	Hot-dip Galvanized
Conductor Diameter (mm)	10
Lightning current load-bearing capacity (10/350µs)	100
Clamping Range Rd/Rd (mm)	10

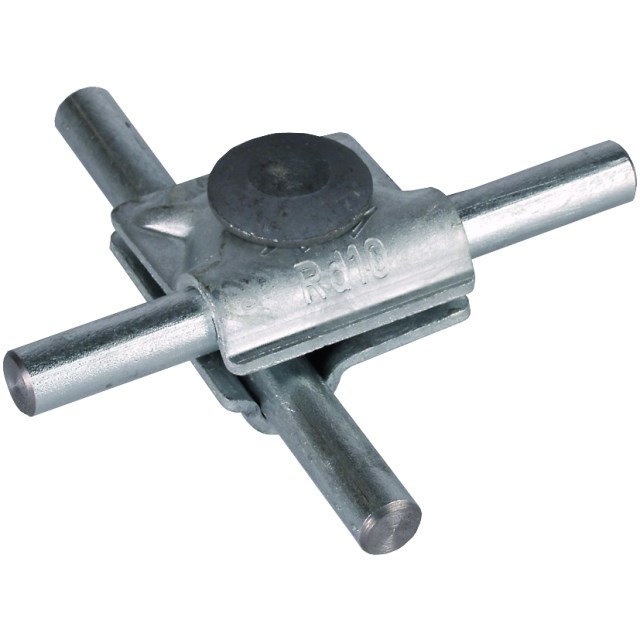

Product Type	MV Clamp With Head Screw
Brand	DEHN
Clamping Range	10 mm
Conductor Size	10 mm
Connection Type	M10 x 35 mm Screw
Connector Type	T/Cross/Parallel Connector
Depth	40 mm
Finish	Hot Dip Galvanized
Lid Screw Type	Truss Head Screw
Lightning Current Carrying Capability	50 kA, 100 kA
Material	Steel
Screw Size	M10 x 35mm
Standards and Approvals	EN 62561-1
Suitable For Use With	Round Conductor
Thickness	2.5 mm
Weight	0.113 kg
Width	40 mm
