Specifications

Dimensions (mm)	40W x 40D
Reference No.	390550
Thickness (mm)	2.5
Suitable For	Round Conductor
Weight (kg)	0.101
Class (Lightning Current Carrying Capability) (kA)	100
Surface Protection	Hot-dip Galvanized
Conductor Diameter (mm)	8
Clamping Range Rd/Rd (mm)	8 - 10
Type	Equipotential Bonding

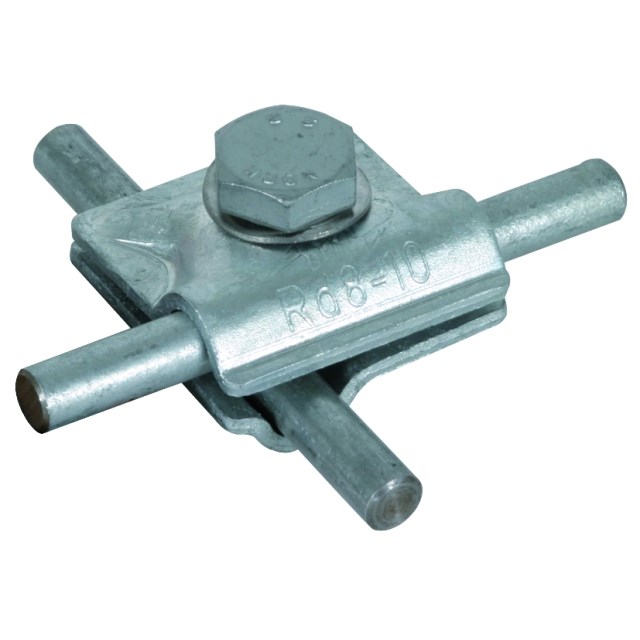

Product Type	MV Clamp With Hexagon Screw and Spring Washer
Brand	DEHN
Clamping Range	8-10 mm
Conductor Size	8 mm
Connection Type	M10 x 30 mm Screw
Connector Type	T/Cross/Parallel Connector
Depth	40 mm
Finish	Hot Dip Galvanized
Lid Screw Type	Hexagon Screw
Lightning Current Carrying Capability	100 kA
Material	Steel
Screw Size	M10 x 30mm
Standards and Approvals	EN 62561-1
Suitable For Use With	Round Conductor
Thickness	2.5 mm
Weight	0.09 kg
Width	40 mm
