Specifications

Article No.	961185
Dimensions (mm)	0.11W x 0.21L x 0.08D
Lightning Impulse Current (10/350 µs) - Iimp (kA)	100
Maximum Continuous Operating Voltage MCOV AC (V)	255
No. of Modules	2
No. of Poles	N-PE
Signal C/O Contact	Yes
SPD Type	Type 1 + Type 2
Voltage Protection Level - Up (kV)	≤ 1.5
Weight (kg)	0.46
Circuit Type	MSB
Response Time (ns)	≤ 100
Operating State/Fault Indication	Green/Red
Product Type	Lightning Current Arrester
Brand	DEHN
Cross Section	10 sq-mm Solid/Flexible, 50 sq-mm Stranded, 35 sq-mm Flexible
Degree of Protection	IP20
Depth	66 mm
Height	150 mm
Lightning Current Carrying Capability	100 kArms
Lightning Impulse Current	100 kA
Material	Thermoplastic
Mounting Type	35 mm DIN Rail
Number of Ports	1
Operational Temperature	-40 to 80 deg C
Rated Voltage	255 VAC
Response Time	<= 100 ns
SPD Class	Type 1, Type 2, Class I, Class II
Standards and Approvals	KEMA
Suitable For Use With	TT Systems
Voltage Protection Level	<=1.5 kV
Weight	370 g
Width	36 mm

Description

Coordinated single-pole N-PE lightning current arrester DEHNgap Maxi, type 1 according to EN 61643-11. Total current arrester specifically designed for use in 3+1 und 1+1 circuits of TT systems according to IEC 60364-5-53 between the N and PE conductor for Uc = 255V. For protecting low-voltage consumer's installations against surge and even direct lightning strikes.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

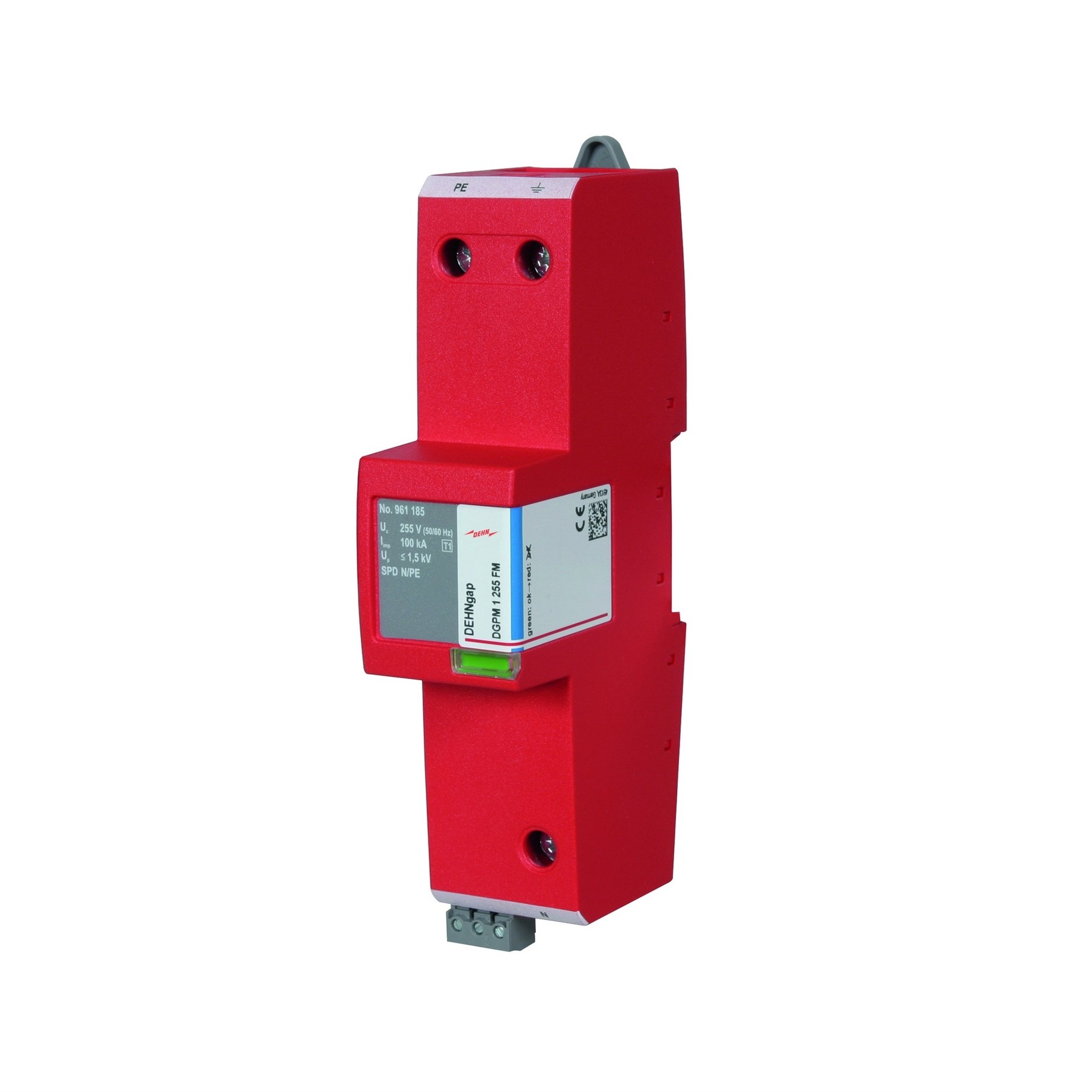

DEHN DGPM1255FM Lightning Current Arrester 100kA 255VAC 35mm DIN Rail 36mm W 66mm D 150mm H Thermoplastic IP20

Product Code: DGPM1255FM
