Brand	RED LION
Input Voltage Range DC (V)	22 - 49
Port Quantity and Type	Data In: 4 x 10/100/1000Base-T Data/PoE Out: 4 x 10/100/1000Base-T
Steady Input Current (A)	5.25A at 24V DC (Full Load) 280mA at 24V DC (No Load)
Degree of Protection	IP20
Dimensions (mm)	51W x 150H x 150D
Inrush Current (A)	59.9A / 60µs at 24V DC
Mounting Type	DIN Rail
Operating Humidity	10% to 95% (Non Condensing)
Operational Temperature Range (°C)	-40°C to 85°C
Standards and Approvals	ANSI/ISA 12.12.01-2015 Class I & II, Div. 2 and Class III, Div. 1 &2, Groups A, B, C and D Hazardous Locations, T4 UL508 Industrial Control Equipment, EN 50155, EN 50121 and EN 61373
Storage Temperature Range (°C)	-40°C to 85°C
Warranty Period (Months)	36 (Design and Manufacturing Defects)

Ethernet Switches

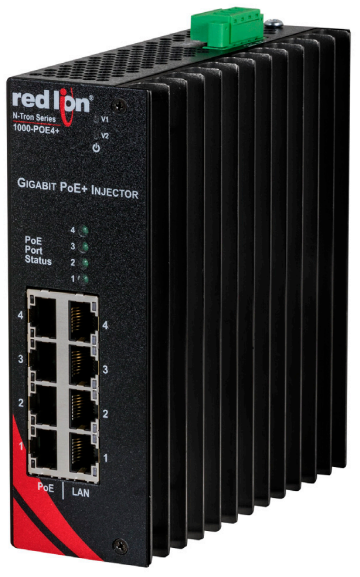

RED LION N-TRON 1000 SERIES GIGABIT POE1000 SERIES GIGABIT POE+ POWER 1000-POE4+
