Specifications

Operational Temperature Range (°C)	-40 to 80
Weight (kg)	1.48
Dimension of Panel (mm)	108.8W x 149.2H x 140.7D
Port Quantity and Type	16 - 10/100/1000BaseTX RJ-45 Ports
Inrush Current (A)	67 (0.096 ms at 24 VDC)
Storage Temperature Range (°C)	-40 to 85
Input Voltage Range DC (V)	22-49 DC
Operating Humidity	10 to 95% (Non-Condensing)
Steady Input Current (A)	11.24 (at 24 VDC)
Vibration	50g, 5-200 Hz
No. of Ports	16

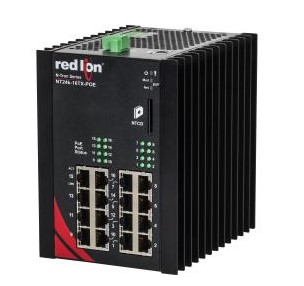

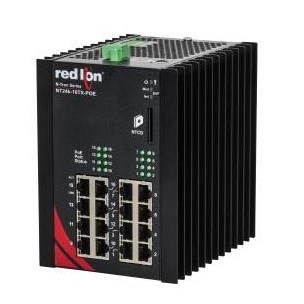

Product Type	PoE Managed Industrial Ethernet Switch
Brand	RED LION
Series	N-Tron
Humidity	10-95%
Mounting Type	DIN Rail
Number of MAC Addresses	16k
Number of Ports	16
Rated Current	11.24 A
Rated Voltage	22-49 VDC
Standards and Approvals	RoHS

Documents
