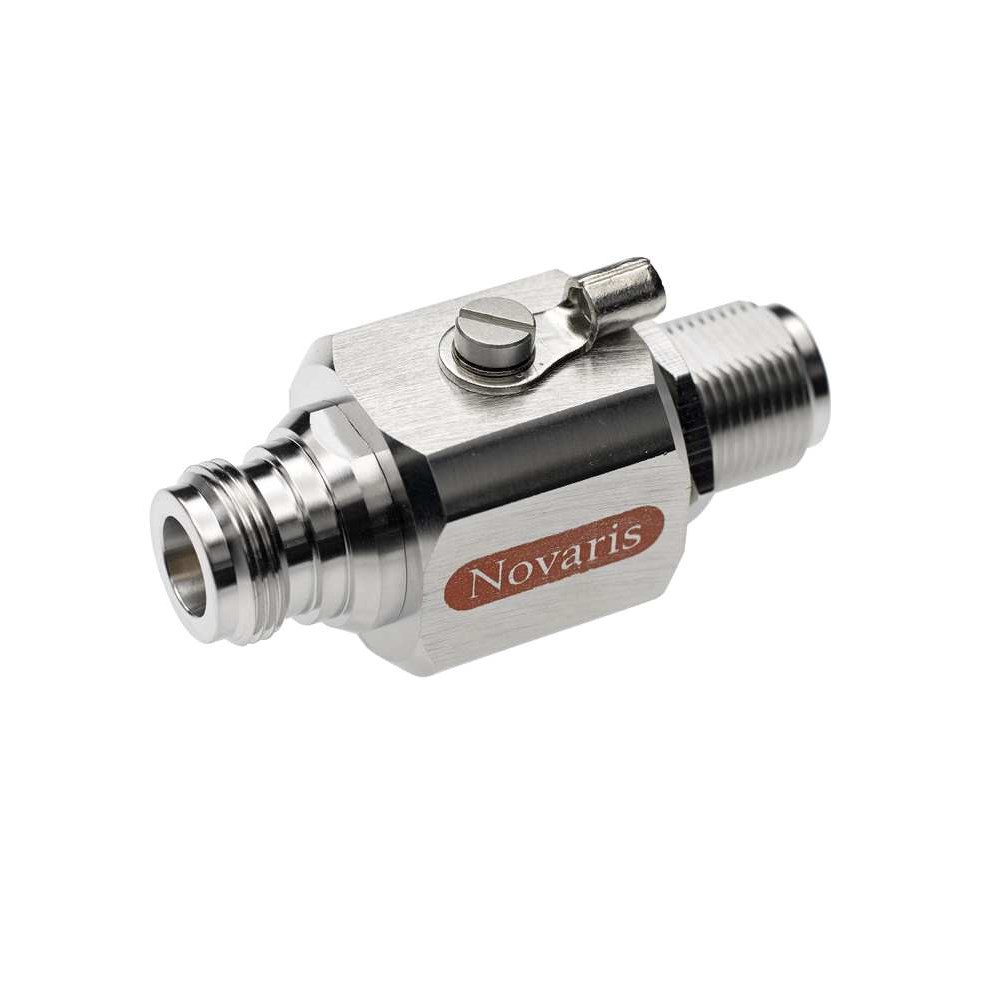

Novaris CN-FF-1000-3 Surge Protector 20kA 50kA 1000VDC 3GHz Brass Nickel Plated IP55

Product Code: CN-FF-1000-3

  • Handles up to 1000 VDC
  • Rated for 20 kA and 50 kA currents
  • Durable IP55 protection rating
  • Operates in -40 to 85°C range
  • Complies with IEC, UL, ITU-T standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 25W x 25H x 60D
Sparkover Voltage DC (V) 1000
Enclosure Material Brass
Maximum Working Frequency (GHz) 3
Power Rating (W) 600-1000
Weight (g) 135
Maximum Discharge Current (8/20µs) (kA) 20
Product Type Surge Protector
Brand NOVARIS
Capacitance <1 pF
Colour Nickel Plated
Connection Type Series
Degree of Protection IP55
Height 25 mm
Humidity 5-95%
Material Brass
Modes of Protection Signal-Earth
Operational Temperature -40 to 85 deg C
Rated Current 20 kA, 50 kA
Rated Frequency 3 GHz
Rated Power 800-2000 W
Rated Voltage 1000 VDC
Resistance 50 Ohm
Standards and Approvals IEC61643-21, UL497B, ITU-T K.44, AS/NZS 1768, IEEE C62.41
Voltage Protection Level <1.8 kV
Weight 150 g
Width 25 mm
