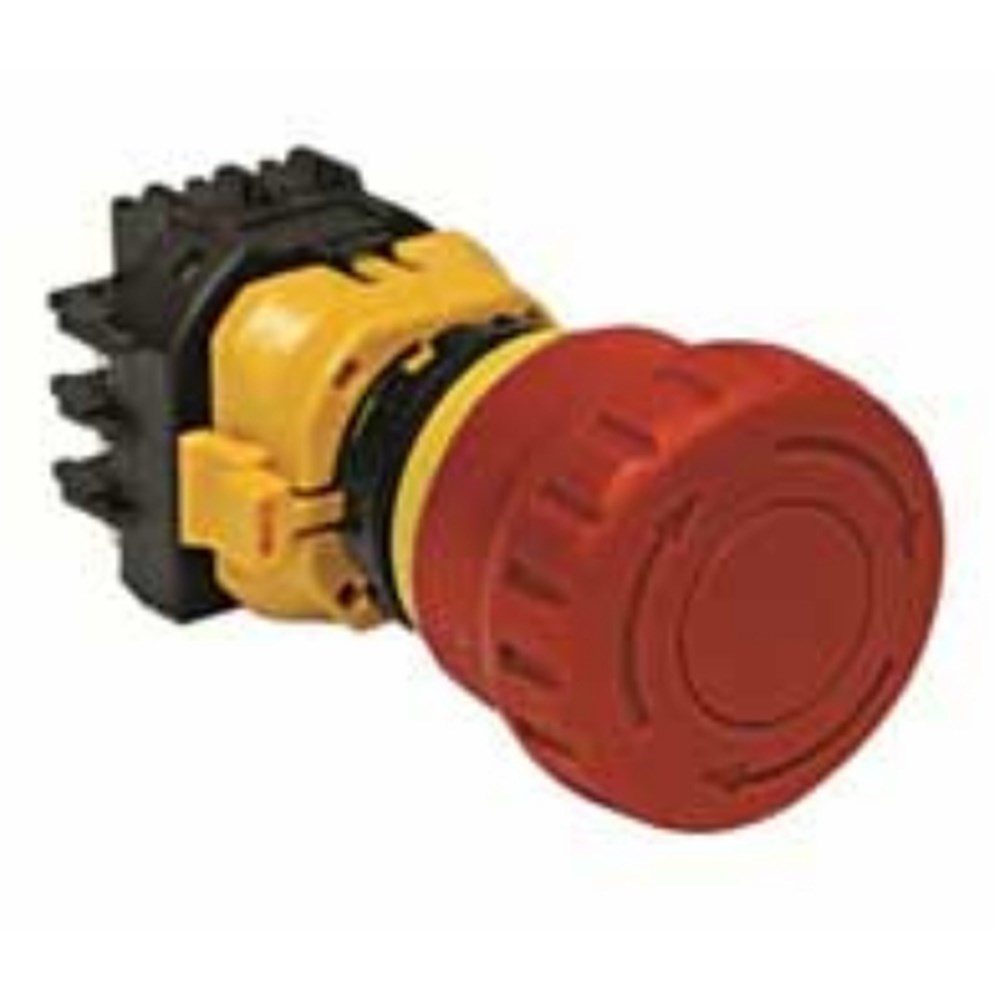

IDEC XW1E-BV413MR Emergency Stop Pushbutton Non-Illuminated 1NO+3NC Red Screw

Product Code: XW1E-BV413MR

  • Non-illuminated red pushbutton
  • IP20 protection rating
  • 1NO+3NC contact config
  • Gold-plated silver contacts
  • Mushroom actuator design
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO+3NC
Conventional Free-Air Thermal Current - Ith (A) Contact Rating - 10
Insulation Resistance (MO) 100
Mushroom Diameter (mm) 40
Mounting Hole Diameter (mm) 22
Operational Temperature Range (°C) -25 to +60
Pollution Degree 3
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 300
Rated Impulse Withstand Voltage (kV) 2.5
Tightening Torque (Nm) Locking Ring - 2.0 Terminal Screw 0.6 - 1.0
Product Type Emergency Stop Pushbutton
Brand IDEC
Series XW
Actuator Type Mushroom
Colour Red
Contact Configuration 1NO+3NC
Contact Material Gold-Plated Silver
Degree of Protection IP20
Illumination Non-Illuminated
Mode of Operation Pushlock Turn/Reset
Rated Impulse Withstand Voltage 2.5 kV
Rated Insulation Voltage 300 V
Standards and Approvals IEC60529, IEC60947-5-1, IEC60947-5-5
Terminal Type Screw

Description

This Non-Illuminated Mushroom Emergency-Stop Pushbutton is designed for engineers seeking a reliable and efficient solution. With its red colour and 40mm diameter, it provides clear visibility and easy access in emergency situations. The pushbutton features a 1NO/3NC configuration, allowing for versatile functionality. It can be reset using the Pushlock, Pull or Turn method, providing flexibility based on user preference. Additionally, this pushbutton is rated IP65, ensuring protection against dust and water ingress. Trust this high-quality product to enhance safety measures in your engineering projects.
