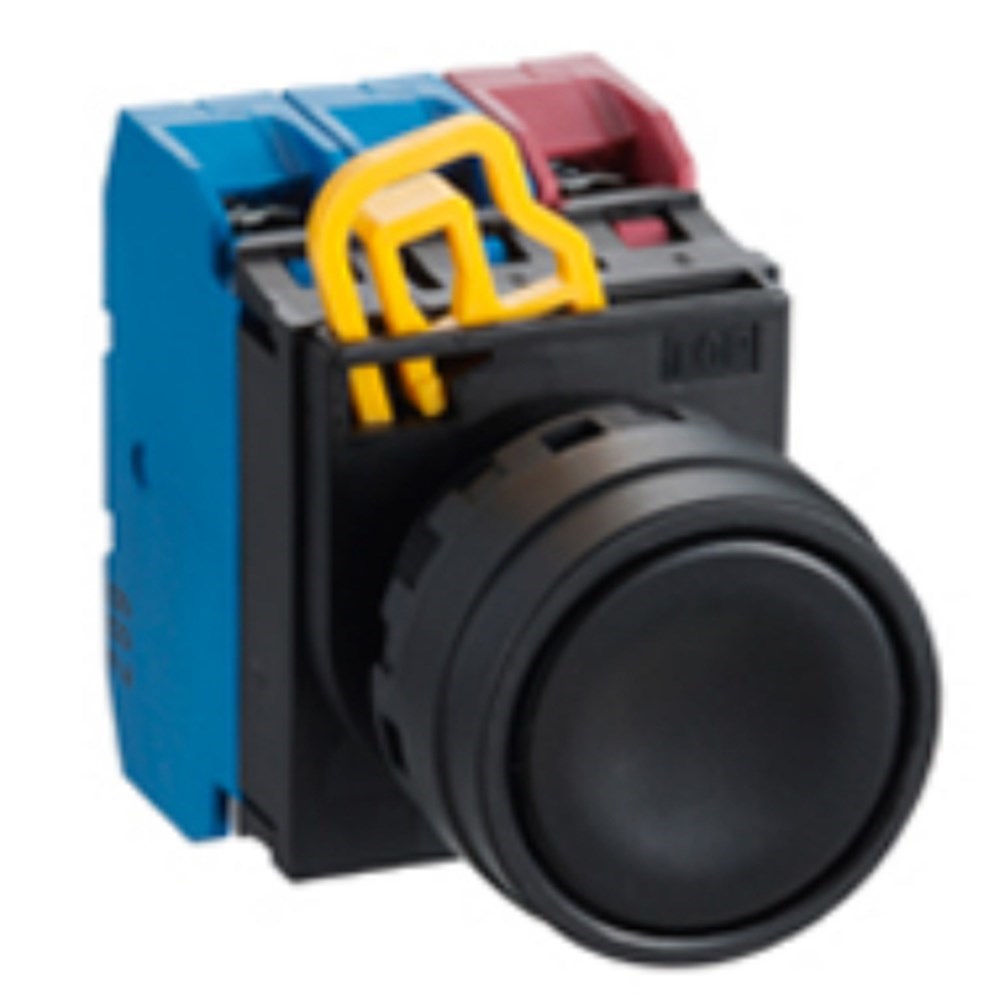

IDECYW1B-A1E10B Non-Illuminated Pushbutton 22mm Flush Maintained Black 1NO

Product Code: YW1B-A1E10B

  • Non-illuminated flush actuator with 22 mm dia.
  • IP65 front protection for durability
  • Operates in -20 to 55°C, stores at -40 to 85°C
  • Screw terminals, silver contacts, black button
  • Certified: cULus, CE, UKCA, CCC
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
Conventional Free-Air Thermal Current - Ith (A) Contact Rating - 10
Insulation Resistance (MO) 100
Mounting Hole Diameter (mm) 22
Operational Temperature Range (°C) -20 to +55
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) Contact Rating - 600
Product Type Pushbutton
Brand IDEC
Series YW
Actuator Type Flush
Bezel Material Plastic
Bezel Type Plastic
Button Colour Black
Colour Black
Contact Configuration 1NO
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Depth 56.8 mm
Diameter 22 mm
Function Maintained
Height 41.4 mm
Humidity 45-85%
Illumination Non-Illuminated
Insulation Resistance 100 MOhm
Mechanical Life 0.25 million Operations Single Contact Block, 0.1 million Operations Double Contact Block
Mode of Operation Maintained
Operational Temperature -20 to 55 deg C
Rated Continuous Current 10 A
Rated Insulation Voltage 600 V
Release Method Pushlock Pull/Turn Reset
Shock Resistance 10 g/ms
Standards and Approvals cULus listed, CE Marked, UKCA Certified, CCC Certified
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Vibration Resistance 5-55 Hz
Width 30 mm

Description

The IDEC YW1B-A1E10B is a non-illuminated pushbutton featuring a sleek black flush design and maintained operation. It includes 1 Normally Open (NO) contact for straightforward control. Designed for 22mm mounting, this pushbutton ensures durability and safety with an IP20 rating and finger-safe terminals. Ideal for various industrial applications, it provides reliable performance with added protection against contact with solid objects.
