Specifications

Product Type	Bonding Bar
Brand	Dehn
Dimensions	522 x 140 x 65 mm
Length	500 mm
Lightning Impulse Current	H 100 kA
Screw Size	M10 x 40 mm / M10 x 20 mm
Standards and Approvals	IEC 62561-1 / CLC 50703-2
Suitable For Use With	Hazardous areas of zones
Weight	2.28 kg
Fixing Screw Type	with spring washer
Type	UV-stabilised
Connection Fl	1x flat conductor 30/40 mm
Connection cable lug	9x flexible/rigid conductor 16–95 mm²
Spring washer material	StSt
Saddle clamp material	StSt
Spacer material	Polyamide / halogen-free, blue
Max. surface temperature	135 °C

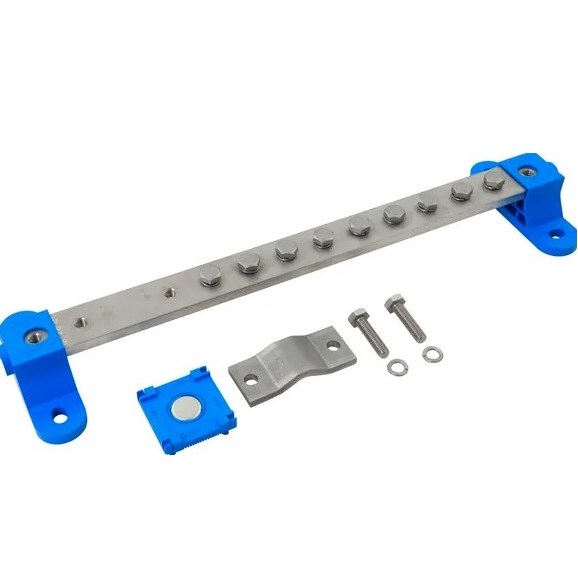

NON-SPARKING, EX EQUIPOTENTIAL BONDING BAR FOR HAZARDOUS AREA 472420
