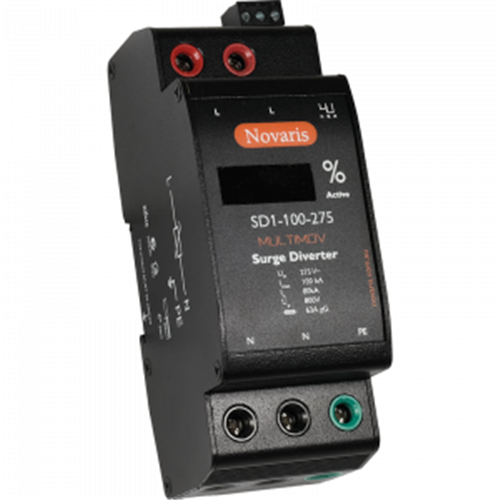

<p>In the realm of electrical safety and protection, surge diverters play an essential role in safeguarding equipment from voltage spikes. The robust surge diverter outlined here is designed for industrial and commercial applications, providing a reliable defense against over-voltage conditions.</p><p>This device operates on a 230 VAC system with a formidable rated current of 150 kA between line to neutral (L-N) and neutral to protective earth (N-PE), making it well-suited for environments prone to high-energy surges. It&#39;s configured for use in three-phase systems, ensuring comprehensive coverage across all phases.</p><p>The digital display feature allows users to monitor operational status easily, enhancing user interaction through clear data presentation. Its shunt connection type ensures efficient diversion of excess energy away from sensitive components, minimizing potential damage.</p><p>With an IP20 degree of protection, this surge diverter is engineered for indoor installations where it will be shielded from direct exposure to dust and moisture. It mounts conveniently on panels with dimensions measuring 200 mm in width, 80 mm in height, and 200 mm in depth—compact enough for various installation spaces yet substantial enough to house its advanced features.</p><p>Built to withstand harsh conditions, this unit operates effectively within a temperature range of -40&#176;C to 70&#176;C. Its metal construction offers durability while maintaining a lightweight profile at just 2.7 kg.</p><p>Compliance with international standards such as IEC 61643-11:2011 and AS/NZS 1768:2007 assures adherence to rigorous safety benchmarks. Additionally, UL 1449 3rd Edition and IEEE standards provide further validation of its reliability under diverse electrical disturbances.</p><p>Fast response times are critical in surge protection; this model boasts impressive figures with &lt;25 ns response time for L-N connections and &lt;100 ns for N-PE connections. This rapid reaction minimizes the risk of equipment damage during transient events.</p><p>For secure installations, tightening torque specifications are set at both 0.5 N-m and 2 N-m depending on application needs. The interrupt rating stands at a robust 100 A while the fuse rating is pegged at an adequate 80 A—ensuring that circuit integrity is maintained even under duress.</p><p>The SPDT contact configuration facilitates versatile integration into existing setups while offering flexibility in control circuits. With voltage protection levels kept below &lt;750V (L-N), it effectively curtails excessive voltages before they reach critical thresholds.</p><p>Protection modes cover L-L, L-N, and N-PE pathways ensuring holistic safeguarding against varied surge types including lightning impulse currents rated at an impressive19 kA (L-N)and30 kA(N-PE). Furthermore,the device supports short circuit currents up to50kA,safeguarding against severe fault conditions efficiently without compromising performance or safety standards.</p>
