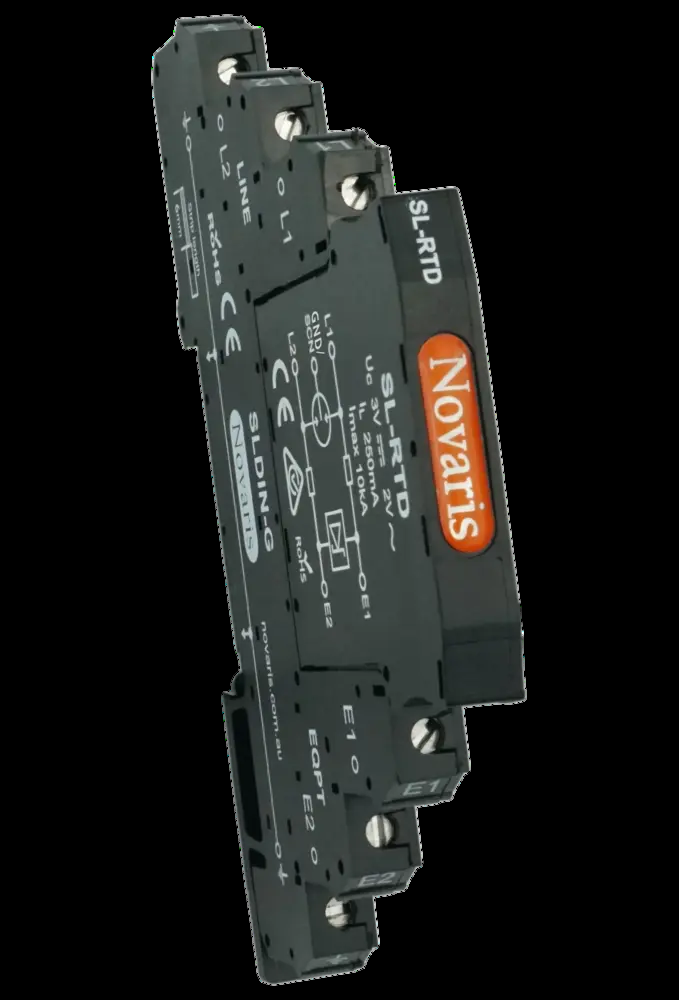

<p>When it comes to safeguarding your signal lines, the Signal Line Protector offers a robust solution for industrial and commercial applications. Engineered to meet rigorous standards, this device ensures reliable protection for sensitive electronic equipment.</p><p>Designed with a focus on performance and durability, the protector operates at a rated voltage of 3 VDC. It can handle substantial surges with its rated current of 5 kA per line and 10 kA in common mode, making it suitable for environments prone to electrical disturbances.</p><p>The connection type is a screw cage, known for its secure and straightforward installation process. This unit mounts easily onto a TS35 DIN rail, providing flexibility in integration within existing systems. Its compact dimensions—7 mm in width, 102 mm in height, and 68 mm in depth—allow it to fit into tight spaces without compromising functionality.</p><p>With an IP20 degree of protection, this device is safeguarded against solid objects larger than 12.5 mm but should be installed indoors or within protected enclosures due to its lack of water resistance. The operational temperature range spans from -55&#176;C to 70&#176;C, ensuring reliability across various climatic conditions.</p><p>Compliance with multiple standards such as IEC 61643-21:2012 and AS/NZS 1768:2007 underscores its quality assurance credentials. Additionally, approvals like UL 1499 (3rd Edition) and ITU-T K.44:2012 further validate its suitability for diverse technical requirements.</p><p>Weighing just 35 grams and constructed from durable polycarbonate material, the protector promises longevity while maintaining lightweight characteristics essential for easy handling during installation or maintenance tasks.</p><p>The response time is impressively quick at less than five nanoseconds (&lt;5 ns), crucial for minimizing potential damage from transient surges. Operating efficiently between humidity levels of 5% to 95%, it remains dependable even under fluctuating environmental conditions.</p><p>For optimal performance during installation, adhere to a tightening torque specification of 0.5 N-m. The capacitance stands at an efficient level of just 18 pF with resistance measured at approximately 3.9 Ohms—both vital parameters contributing towards minimal signal loss during operation.</p><p>Featuring a voltage protection level set at an effective threshold of up to15 volts alongside G direct earthing base type ensures grounded stability when managing unexpected electrical events via transverse or common modes protection strategies across one pair line configuration ensuring comprehensive safety coverage throughout use cases encountered daily by professionals working within this sector.</p>
