Specifications

Product Type	Surge Protector With Base
Brand	NOVARIS
Base Type	EC90 Indirect Earthing
Capacitance	16 nF
Connection Type	Series
Degree of Protection	IP20
Depth	68 mm
Discharge Current	3.6 kA
Height	102 mm
Humidity	5-95%
Material	Polycarbonate
Modes of Protection	Transverse and Common Modes
Mounting Type	TS35 DIN Rail
Number of Lines	1 pair
Operational Temperature	-40 to 70 deg C
Rated Current	1.8 kA (Per Line), 3.6 kA (Common Mode)
Rated Voltage	170 VDC
Resistance	0.02 Ohm
Response Time	<5 ns
Standards and Approvals	IEC 61643-21:2012, AS/NZS 1768:2007, UL 1499 3rd Edition and UL 497B, ITU-T K.44: 2012, AS/CA S008:2010, AS/NZS 4117:1999
Tightening Torque	0.5 N-m
Voltage Protection Level	450 V
Weight	35 g
Width	7 mm

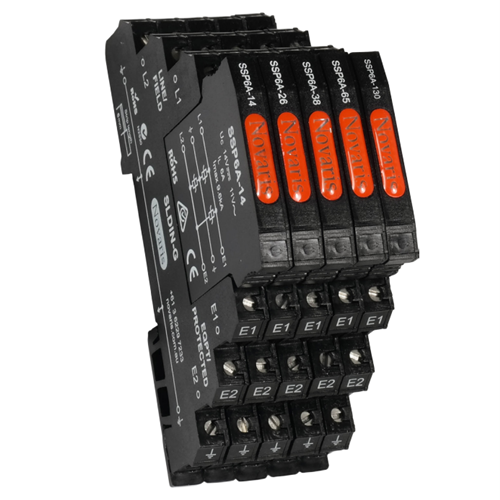

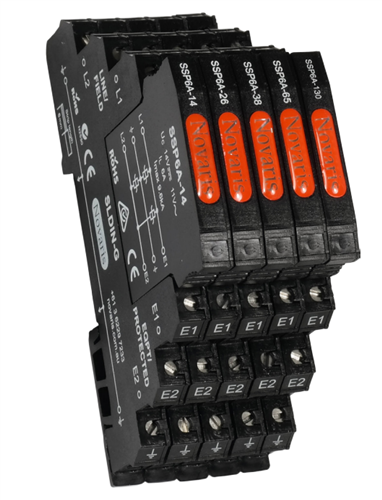

Novaris SSP6A-130-EC90 Surge Protector With Base 1.8kA 3.6kA 3.6kA 170VDC TS35 IP20
