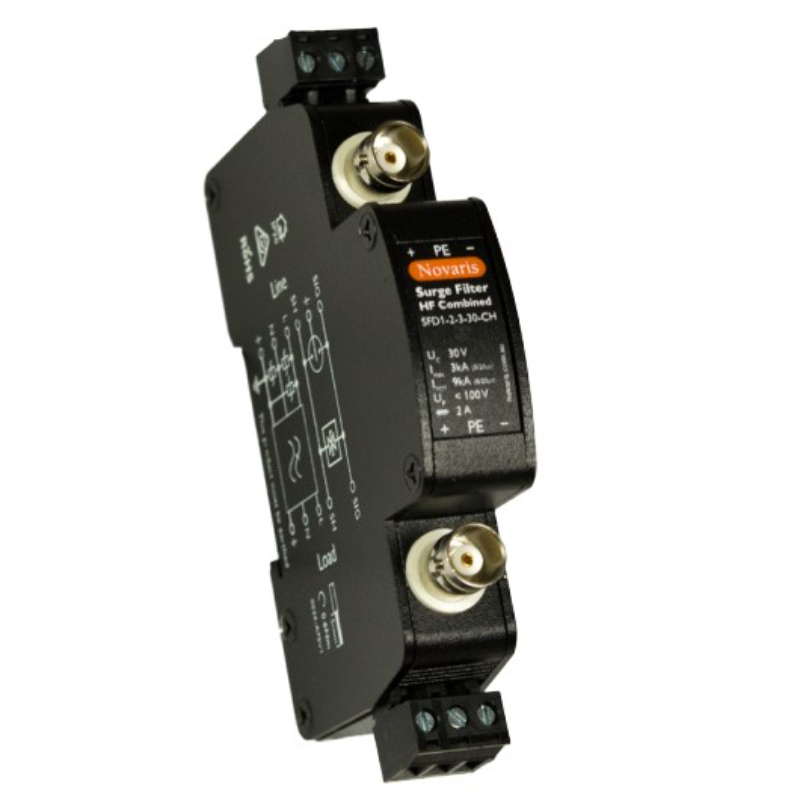

When it comes to safeguarding your electrical systems from surges, a reliable surge filter is indispensable. This particular Surge Filter is designed with the technical needs of industrial and commercial settings in mind, ensuring robust protection and compliance with international standards.
Operating at a rated voltage of 24 VAC, this single-phase surge filter offers comprehensive protection for both power and signal lines. With a rated current capacity of 2 kA for power lines and an impressive 20 kA for signal lines, it stands ready to handle significant electrical disturbances.
The device features an IP20 degree of protection, making it suitable for indoor environments where solid object intrusion is a concern but water exposure is minimal. Its installation on a TS35 DIN rail ensures ease of mounting and integration into existing systems.
Designed to perform in diverse conditions, the surge filter operates effectively within a temperature range from -40 to 85 degrees Celsius. It also tolerates humidity levels between 5% and 95%, showcasing its resilience across various environments.
Safety and compliance are paramount in its design, adhering to multiple standards such as IEC 61643-1 Class II & III, AS/NZS 1768 Category A & B, IEEE C62.41 Category A & B, IEC 1000-4-5, and UL1499 Third Edition. These certifications ensure that the product meets rigorous international safety requirements.
Weighing just 300 grams, it's lightweight yet sturdy enough for industrial applications. Installation requires a tightening torque of only 0.5 N-m, simplifying setup without compromising stability or security.
In terms of performance metrics like Voltage Protection Level (VPL), this surge filter maintains VPL below 50 V—critical for sensitive equipment needing precise voltage regulation during surges. The modes of protection include L-N (Line-Neutral), L-PE (Line-Protective Earth), and N-PE (Neutral-Protective Earth), providing comprehensive coverage against potential faults or overloads.
Moreover, with a rated short circuit current capacity of up to 2 A, you can trust this unit to maintain operational integrity even under challenging conditions.
