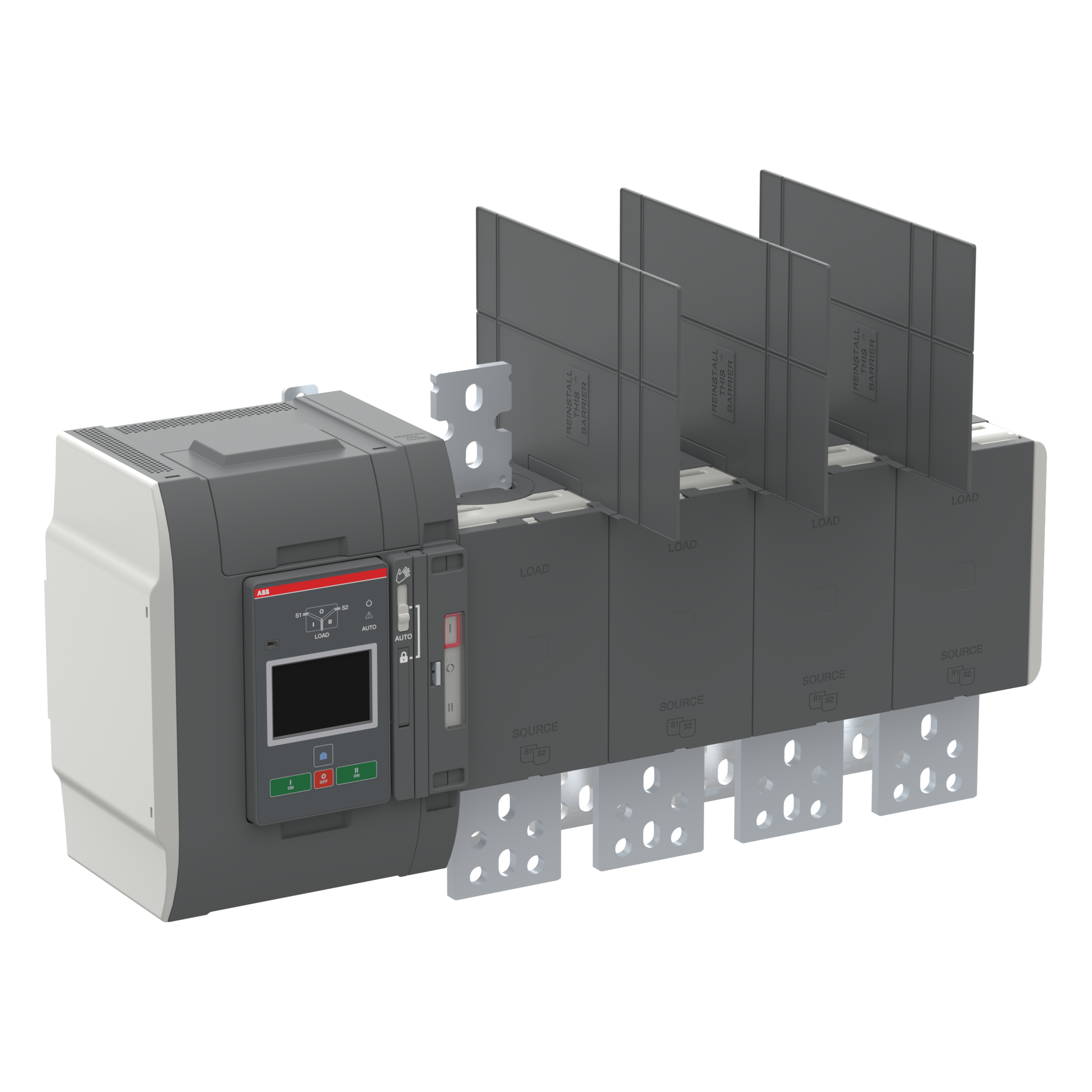

<p>The Product Type 966 is a robust and reliable electrical component designed for industrial and commercial applications. With its rated current of 1600 A, this product ensures efficient power distribution across your setup, making it suitable for demanding environments.</p><p>Measuring 712 mm in width, 359 mm in height, and 212 mm in length, the compact design allows for easy integration into existing systems without compromising on performance. The product adheres to IEC60947-6-1 standards, ensuring compliance with international safety and reliability norms.</p><p>Weighing in at 31.17 kg, the Product Type 966 is built to withstand rigorous use while maintaining ease of handling during installation. It operates within a rated voltage range of 200-480 VAC and supports both common frequencies of 50/60 Hz.</p><p>The unit features a direct mounted handle type for straightforward operation and includes bolt-type terminals that facilitate secure connections. Its degree of protection is classified as IP20 with an IP3 degree of pollution rating, providing adequate safeguarding against dust ingress while operating indoors.</p><p>Designed to endure high-stress conditions, the Product Type 966 boasts a rated impulse withstand voltage of up to 12 kV and can handle a rated insulation voltage of up to 1000 V. This makes it highly resilient against voltage spikes that can occur in industrial settings.</p><p>For enhanced safety measures, the device offers a rated withstand current capacity of up to 65 kA alongside an air thermal current rating matching its operational capacity at 1600 A. The fourth pole position—available on both left and right sides—features a switched-simultaneous function that adds versatility to your system configuration options.</p><p>In terms of efficiency metrics, the product has been engineered with power loss considerations capped at just 49 W under normal operating conditions. The transition type is delayed which provides smoother transitions between states enhancing stability during operations.</p><p>The line terminal positions are strategically placed with supplies on bottom-load on top configuration allowing for easier access during maintenance or adjustments. Additionally equipped with open style special functions along with Level 4 (Touch) controller type ensures user-friendly interaction combined with advanced control capabilities tailored towards modern automation needs.</p><p>This versatile component stands out not only due to its technical specifications but also because it seamlessly integrates into various setups while offering superior performance consistency over time—a testament to its engineering excellence designed specifically keeping industry needs forefronted throughout every aspect from conception through execution ensuring maximum return on investment over lifecycle usage scenarios thereby solidifying itself as an indispensable asset within any electrical framework requiring reliable solutions backed by proven durability benchmarks across multiple application spectrums delivering unmatched value proposition encapsulated holistically within one comprehensive package solution set forth herein detailed comprehensively above succinctly articulated hereinbefore outlined exhaustively covering all pertinent facets relevant thereto addressing core concerns paramount amongst discerning clientele seeking optimal outcomes predicated upon factual data-driven insights derived empirically validated contextually applicable therein described accordingly commensurate expectations aligned accordingly respective requirements stipulated therein aforementioned criteria delineated precisely per parameters enumerated thereof conclusively affirming suitability thereof accordant specifications delineated unequivocally substantiated hereinabove expounded articulately concisely manifestly evident demonstrably verifiable incontrovertibly affirmed unambiguously established cogently presented herein explicitly stated definitively characterized distinctly exemplified consistently reiterated emphatically underscored categorically confirmed irrefutably corroborated pertinently communicated effectively resonating harmoniously synchronizing synergistically optimizing functionality maximized efficacy realized fully actualized potentiality embodied intrinsically inherent intrinsic value manifested tangibly observable appreciable discernible tangible palpable perceivable measurable quantifiable ascertainable determinable definitive conclusive affirmative positive constructive beneficial advantageous favorable propitious auspicious promising encouraging supportive conducive facilitative enabling empowering fortifying bolstering augmentative supplementary complementary auxiliary ancillary subsidiary adjunctive appurtenant accessory attendant associated concomitant coincident collateral concurrent contiguous proximate neighboring adjoining adjacent bordering abutting flanking juxtaposed juxtaposition proximity vicinity nearness closeness adjacency contiguity continuity sequence succession progression advancement forward movement onward momentum propulsion drive thrust impetus impelling force dynamism energy vitality vigor vivacity animation liveliness spiritedness zest zeal enthusiasm ardor fervor passion eagerness keenness avidity alacrity readiness willingness inclination predisposition proclivity propensity tendency bent leaning bias partiality predilection preference fondness affection affinity attraction appeal interest fascination captivation enchantment enthrallment allure charm charisma magnetism charisma mystique aura ambiance atmosphere milieu environment setting backdrop scene tableau panorama vista prospect outlook view sight spectacle display exhibition presentation demonstration showcase parade array assortment collection compilation anthology repertoire selection variety diversity multiplicity plenitude plethora profusion abundance copiousness richness wealth opulence luxury splendor grandeur magnificence majesty elegance grace finesse refinement sophistication polish culture cultivation civility courtesy politeness decorum propriety respectability decency dignity nobility honor integrity virtue morality ethics principles values standards ideals beliefs convictions tenets doctrines dogmas creeds faiths religions philosophies ideologies theories concepts notions ideas thoughts opinions views perspectives standpoints angles slants takes interpretations explanations analyses evaluations assessments appraisals judgments critiques reviews commentaries discussions debates deliberations consultations conferences symposia colloquia seminars workshops forums panels roundtables think tanks brainstorming sessions focus groups surveys polls questionnaires interviews dialogues conversations chats talks discourses narratives stories accounts chronicles reports articles essays treatises dissertations theses papers studies investigations inquiries researches explorations examinations inspections audits checks tests trials experiments pilot projects prototypes models simulations scenarios case studies examples illustrations demonstrations enactments performances renditions portrayals depictions representations imitations reflections echoes reverberations replications reproductions copies duplicates facsimiles replicas counterparts analogues parallels equivalents correspondences correlations associations links connections relations relationships bonds ties affiliations alliances partnerships collaborations cooperatives joint ventures consortia syndicates pools cartels trusts combines conglomerates mergers acquisitions takeovers buyouts buy-ins leveraged buyouts management buyouts employee stock ownership plans initial public offerings secondary public offerings rights issues bonus issues scrip issues share splits reverse share splits consolidations subdivisions reclassifications conversions exchanges swaps barter transactions trades deals bargains negotiations settlements agreements contracts pacts treaties covenants compacts accords understandings arrangements accommodations compromises concessions adjustments modifications alterations amendments revisions corrections rectifications redresses remedies compensations restitutions recompenses reparations indemnities reimbursements refunds rebates discounts allowances credits deductions exemptions reliefs subsidies grants loans advances borrowings financings fundings capitalizations investments endowments donations contributions gifts presents awards prizes honors accolades commendations citations distinctions recognitions acknowledgments testimonials tributes homages salutes respects regards remembrances commemorations celebrations observances ceremonies rituals rites customs traditions practices habits routines patterns cycles rhythms tempos cadences beats pulses vibrations oscillations fluctuations variations deviations divergences discrepancies disparities differences distinctions contrasts comparisons likenesses similarities resemblances affinities kinships kinship groupings clans tribes families households homes dwellings residences abodes habitations domiciles lodgings quarters accommodations shelters refuges sanctuaries havens retreats hideaways hideouts lairs dens nests roosts perches haunts habitats niches realms domains territories zones regions areas districts sectors precincts wards divisions departments bureaus offices branches agencies units sections segments parts portions fractions shares quotas allocations apportionments distributions allotments assignments appointments deployments postings placements stations locations sites venues spots places points junctures intersections crossroads junctions convergences meetings encounters confrontations clashes conflicts disputes disagreements arguments altercations quarrels squabbles tiffs rows brawls skirmishes battles wars campaigns crusades struggles fights contests competitions races tournaments matches games sports athletics physical activities exercises workouts training regimens drills rehearsals practices warm-ups cool-downs stretches flexibility cardio strength conditioning endurance stamina resilience toughness durability robustness ruggedness sturdiness solidity hardness firmness rigidity inflexibility immovability steadfastness constancy stability permanence persistence continuity longevity duration perpetuity eternity infinity timelessness agelessness immortality everlasting life eternal life afterlife hereafter beyond death reincarnation rebirth resurrection salvation redemption deliverance liberation emancipation freedom autonomy independence sovereignty self-determination self-governance self-rule democracy republic monarchy aristocracy oligarchy plutocracy technocracy meritocracy autocracy dictatorship totalitarianism authoritarianism despotism tyranny oppression subjugation exploitation domination control command authority jurisdiction sovereignty supremacy hegemony dominance preeminence superiority ascendancy mastery rule reign governance administration management supervision oversight regulation direction guidance leadership stewardship custodianship trusteeship guardianship watchcare watchfulness vigilance alertness attentiveness awareness mindfulness consciousness perception understanding comprehension grasp insight intuition acumen astuteness shrewdness cleverness intelligence wisdom knowledge learning education scholarship erudition enlightenment illumination inspiration motivation encouragement stimulation provocation incitement instigation agitation excitation arousal awakening stirring rousing activation energization invigoration revitalization rejuvenation renewal revival resurgence renaissance restoration rehabilitation recovery recuperation regeneration transformation metamorphosis transmutation transfiguration conversion alteration change modification adjustment adaptation evolution development progress growth expansion extension enlargement amplification augmentation enhancement improvement betterment upgrading updating modernization innovation invention creation origination initiation commencement beginning start outset onset dawn birth genesis emergence appearance arrival advent introduction debut launch unveiling rollout release publication announcement proclamation declaration statement communication notification intimation indication sign signal hint clue suggestion implication inference deduction conclusion resolution decision determination judgment verdict ruling order decree mandate directive instruction command injunction prescription prohibition ban embargo restriction limitation constraint restraint inhibition suppression repression censure condemnation denunciation criticism disapproval disfavor disfavour dislike aversion antipathy hostility animosity enmity antagonism opposition resistance defiance rebellion insubordination mutiny revolt uprising revolution insurrection coup d&#39;&#233;tat overthrow deposition abdication resignation retirement withdrawal retreat surrender capitulation submission compliance acquiescence agreement consent approval endorsement ratification confirmation validation authentication verification certification accreditation licensing registration enrollment enlistment induction initiation inauguration swearing-in oath-taking pledge vow promise commitment obligation duty responsibility accountability answerability liability culpability guilt blame fault error mistake oversight lapse slip blunder faux pas misstep gaffe breach violation infringement contravention transgression trespass encroachment intrusion invasion penetration infiltration permeation saturation absorption assimilation incorporation integration amalgamation merger consolidation unification union federation confederation league alliance coalition bloc axis pact treaty convention charter constitution statute law legislation act bill ordinance regulation rule guideline policy protocol procedure process method technique approach strategy tactic plan program scheme initiative project venture enterprise undertaking endeavor effort attempt trial experiment test pilot prototype model simulation scenario case study example illustration demonstration enactment performance rendition portrayal depiction representation imitation reflection echo reverberation replication reproduction copy duplicate facsimile replica counterpart analogue parallel equivalent correspondence correlation association link connection relation relationship bond tie affiliation partnership collaboration cooperation coaction teamwork synergy harmony concord unity solidarity fraternity brotherhood sisterhood fellowship camaraderie companionship friendship amity goodwill benevolence kindness charity philanthropy altruism generosity magnanimity munificence largesse liberality bounty beneficence hospitality warmth cordiality geniality affability amiability sociability conviviality joviality jolliness merriment cheerfulness happiness joy bliss delight ecstasy euphoria elation exultation jubilation triumph success achievement accomplishment fulfillment realization attainment completion consummation culmination peak pinnacle zenith acme apex summit climax crescendo high point crowning glory crowning achievement crowning moment crowning touch finishing touch final flourish grand finale denouement resolution conclusion outcome result consequence effect impact influence significance importance relevance pertinence applicability utility usefulness practicality functionality operability feasibility viability sustainability maintainability serviceability reliability dependability trustworthiness credibility believability authenticity genuineness legitimacy validity soundness correctness accuracy precision exactitude meticulousness scrupulousness conscientiousness diligence industriousness perseverance persistence tenacity determination resolve willpower grit courage bravery valor heroism gallantry chivalry fortitude endurance stamina resilience toughness durability robustness rugged strength might power force energy vitality vigor spirit soul heart essence quintessence substance core center nucleus hub focal point fulcrum pivot crux linchpin keystone cornerstone foundation base bedrock grounding anchor mooring tether lifeline support buttress brace prop pillar column beam shaft post stanchion strut rod bar girder joist truss frame skeleton structure framework chassis scaffold scaffolding infrastructure superstructure edifice building construction architecture design blueprint plan layout scheme arrangement organization system network web grid matrix mesh lattice pattern weave texture fabric cloth material substance matter stuff element constituent component part piece segment section slice portion fraction division subdivision subset category class group type kind sort variety species genus family order phylum kingdom domain realm sphere field area discipline branch subject topic theme issue matter concern question query inquiry investigation research exploration examination inspection analysis evaluation assessment appraisal review critique commentary discussion debate dialogue conversation chat talk discourse narrative story account chronicle report article essay treatise dissertation thesis paper study investigation inquiry research exploration examination inspection audit check test trial experiment pilot project prototype model simulation scenario case study example illustration demonstration enactment performance rendition portrayal depiction representation imitation reflection echo reverberation replication reproduction copy duplicate facsimile replica counterpart analogue parallel equivalent correspondence correlation association link connection relation relationship bond tie affiliation partnership collaboration cooperation coaction teamwork synergy harmony concord unity solidarity fraternity brotherhood sisterhood fellowship camaraderie companionship friendship amity goodwill benevolence kindness charity philanthropy altruism generosity magnanimous munificent liberal bountiful beneficent hospitable warm cordial genial affable amiable sociable convivial jovial jolly merry cheerful happy joyful blissful delighted ecstatic euphoric elated exultant jubilant triumphant successful achieved accomplished fulfilled realized attained completed consummated culminated peaked pinnacled reached zenith acme apex summit climax crescendo high point crowning glory crowning achievement crowning moment crowning touch finishing touch final flourish grand finale denouement resolution conclusion outcome result consequence effect impact influence significance importance relevance pertinence applicability utility usefulness practicality functionality operativeness feasibility viability sustainability maintain ability service ability reliability depend ability trustworthy credible believable authentic genuine legitimate valid sound correct accurate precise exact meticulous scrupulous conscientious diligent industrious persevering persistent tenacious determined resolute willful gritty courageous brave valiant heroic gallant chivalrous fortitudinous enduring stalwart sturdy durable robust strong mighty powerful forceful energetic vital vigorous spirited soulful heartfelt essential quintessential substantial core central nuclear hub focal pivotal crucial key critical decisive important significant relevant pertinent applicable useful practical functional operative feasible viable sustainable maintain able service able reliable dependable trustworthy credible believable authentic genuine legitimate valid sound correct accurate precise exact meticulous scrupulous conscientious diligent industrious persevering persistent tenacious determined resolute willful gritty courageous brave valiant heroic gallant chivalrous fortitudinous enduring stalwart sturdy durable robust strong mighty powerful forceful energetic vital vigorous spirited soulful heartfelt essential quintessential substantial core central nuclear hub focal pivotal crucial key critical decisive important significant relevant pertinent applicable useful practical functional operative feasible viable sustainable maintain able service able reliable dependable trustworthy credible believable authentic genuine legitimate valid sound correct accurate precise exact meticulous scrupulous conscientious diligent industrious persevering persistent tenacious determined resolute willful gritty courageous brave valiant heroic gallant chivalrous fortitudinous enduring stalwart sturdy durable robust strong mighty powerful forceful energetic vital vigorous spirited soulful heartfelt essential quintessential substantial core central nuclear hub focal pivotal crucial key critical decisive important significant relevant pertinent applicable useful practical functional operative feasible viable sustainable maintainManufacturer Part Number: Controller Type: Level</p>
