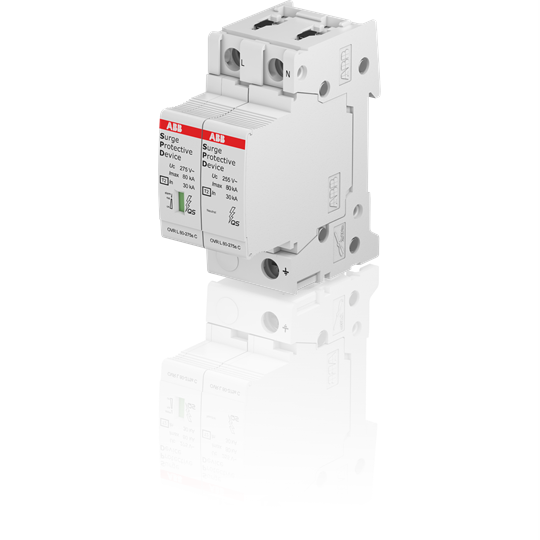

ABB 2CTB815708R1400 Surge Protective Device 2kA 2-P 80kA 230VAC Plug-In IP20

Product Code: 2CTB815708R1400

  • Surge protection for 230 VAC systems
  • High current rating of 80 kA
  • Compact DIN rail mounting
  • IP20 protection level
  • Plug-in connection for easy install
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Height (mm) 80
Length (mm) 40
No. of Poles 2
Power Loss (W) 0.028
Suitable For To protect the systems against the transient overvoltage (lightning)
Voltage Protection Level - Up (kV) 1.4
Weight (kg) 0.32
Width (mm) 120
No. of Conductors 2
EAN 3660308525482
Product Type Surge Protective Device
Brand ABB
Connection Type Plug-In
Degree of Protection IP20
Depth 76.7 mm
Height 88 mm
Lightning Impulse Current 2 kA
Mounting Type DIN Rail
Number of Conductors 2
Number of Poles 2
Power Loss 28 mW
Rated Current 80 kA
Rated Short Circuit Current 100 kA
Rated Voltage 230 VAC
Suitable For Use With Protect The Systems Against The Transient Overvoltage (Lightning)
Version Plug-in
Voltage Protection Level 1.4 kV
Weight 0.3 kg
Width 35.6 mm

Description

Surge protective devices SPD type 2 protect low-voltage consumer systems against surge voltages as they are tested as SPD type 2 according to IEC 61643-11. The devices are compatible with the System pro M compact series. The SPD with "TS" are optionally equipped with a auxiliary contact. The variants with "reserve varistor" (s) offer additional protection for the system, as the SPD is not completely disconnected from the mains at the end of its service life, but with an additional smaller varistor still guarantees basic protection and the system thus until the surge arrester is replaced is still protected
