Specifications

Height (mm)	80
Length (mm)	60
No. of Poles	3
Power Loss (W)	0.049
Rated Voltage AC (V)	230
Suitable For	To protect the systems against the transient overvoltage (lightning)
Voltage Protection Level - Up (kV)	1.4
Weight (kg)	0.48
Width (mm)	120
No. of Conductors	3
EAN	3660308525314

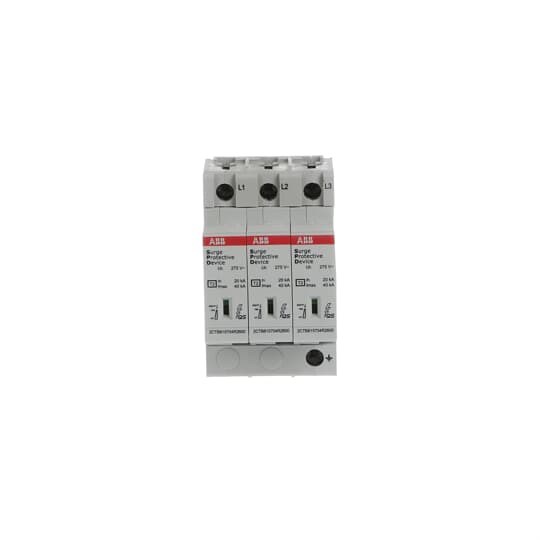

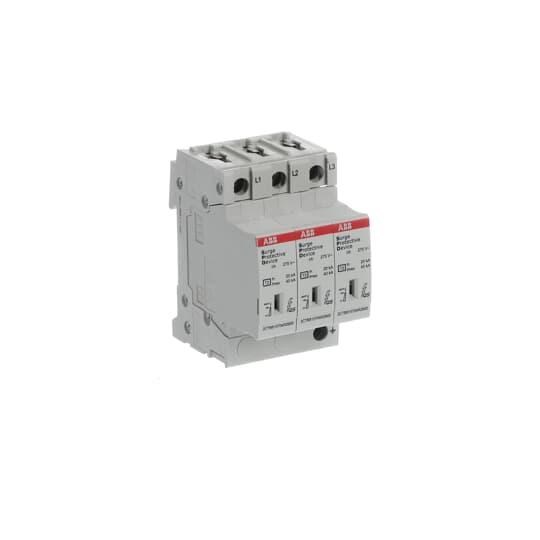

Product Type	Surge Protective Device
Brand	ABB
Connection Type	Plug-In
Degree of Protection	IP20
Depth	76.7 mm
Height	88 mm
Lightning Impulse Current	2 kA
Mounting Type	DIN Rail
Number of Conductors	3
Number of Poles	3
Power Loss	49 mW
Rated Current	80 kA
Rated Short Circuit Current	100 kA
Rated Voltage	230 VAC
Suitable For Use With	Protect The Systems Against The Transient Overvoltage (Lightning)
Version	Plug-in
Voltage Protection Level	1.4 kV
Weight	0.045 kg
Width	53.4 mm
