Specifications

No. of Poles	4
Power Loss (W)	0.156
Rated Voltage AC (V)	230
Suitable For	To protect the systems against the transient overvoltage (lightning)
Voltage Protection Level - Up (kV)	1.5
Weight (kg)	0.5
Width (mm)	120
Height (mm)	80
Length (mm)	80
No. of Conductors	4
EAN	3660308519986

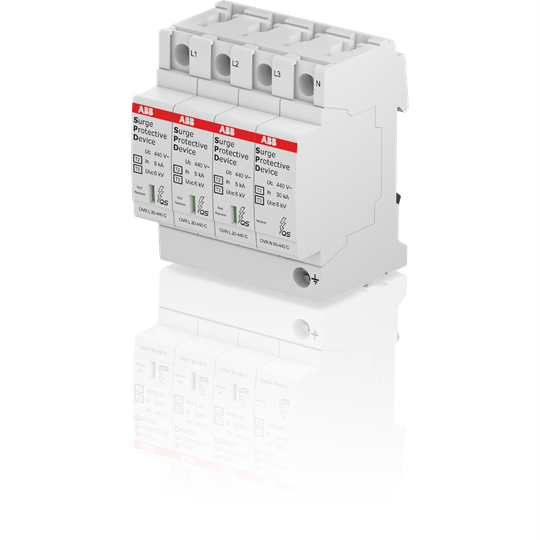

Product Type	Surge Protective Device
Brand	ABB
Connection Type	Plug-In
Degree of Protection	IP20
Depth	58 mm
Height	88 mm
Lightning Impulse Current	2 kA
Mounting Type	DIN Rail
Number of Conductors	4
Number of Poles	4
Power Loss	156 mW
Rated Current	20 kA
Rated Short Circuit Current	100 kA
Rated Voltage	690 VAC
Suitable For Use With	Protect The Systems Against The Transient Overvoltage (Lightning)
Version	Plug-in
Voltage Protection Level	1.5 kV
Weight	0.48 kg
Width	71.2 mm
