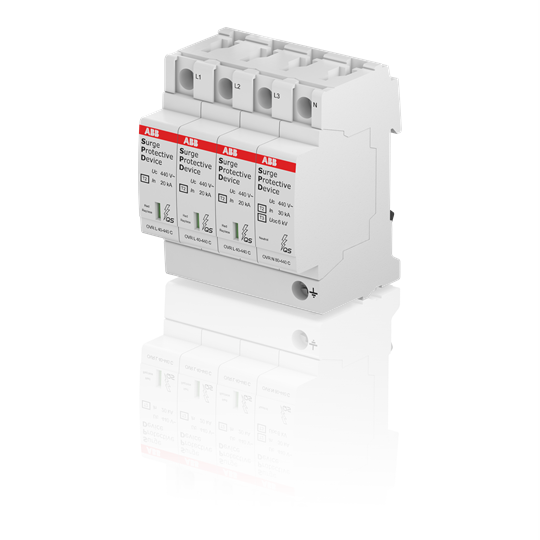

Product Code: 2CTB803973R1400

400 VAC surge protector for reliable protection
Handles up to 40 kA current capacity
Plug-in connection for easy installation
Compact design: 71.2mm width, DIN rail mountable
Protects systems from transient overvoltage (lightning)

Specifications

No. of Poles	4
Power Loss (W)	0.156
Rated Voltage AC (V)	230
Suitable For	To protect the systems against the transient overvoltage (lightning)
Voltage Protection Level - Up (kV)	2.1
Weight (kg)	0.5
Width (mm)	120
Height (mm)	80
Length (mm)	80
No. of Conductors	4
EAN	3660308519993
Product Type	Surge Protective Device
Brand	ABB
Connection Type	Plug-In
Degree of Protection	IP20
Depth	58 mm
Height	88 mm
Lightning Impulse Current	2 kA
Mounting Type	DIN Rail
Number of Conductors	4
Number of Poles	4
Power Loss	156 mW
Rated Current	40 kA
Rated Short Circuit Current	100 kA
Rated Voltage	400 VAC
Suitable For Use With	Protect The Systems Against The Transient Overvoltage (Lightning)
Version	Plug-in
Voltage Protection Level	2.1 kV
Weight	0.48 kg
Width	71.2 mm

Description

Surge protective devices SPD type 2 protect low-voltage consumer systems against surge voltages as they are tested as SPD type 2 according to IEC 61643-11. The devices are compatible with the System pro M compact series. The SPD with "TS" are optionally equipped with a auxiliary contact.
