Specifications

Height (mm)	80
Length (mm)	30
No. of Poles	1
Power Loss (W)	0.028
Rated Voltage AC (V)	230
Suitable For	To protect the systems against the transient overvoltage (lightning)
Voltage Protection Level - Up (kV)	1.4
Weight (kg)	0.17
Width (mm)	120
No. of Conductors	1
EAN	3660308525222

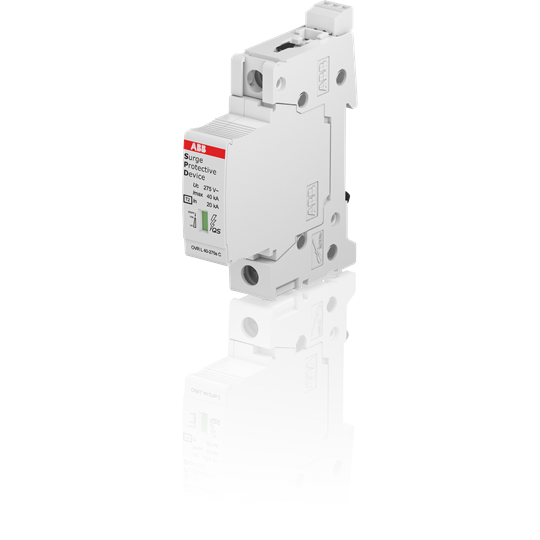

Product Type	Surge Protective Device
Brand	ABB
Connection Type	Plug-In
Degree of Protection	IP20
Depth	76.7 mm
Height	95.8 mm
Lightning Impulse Current	2 kA
Mounting Type	DIN Rail
Number of Conductors	1
Number of Poles	1
Power Loss	28 mW
Rated Current	40 kA
Rated Short Circuit Current	100 kA
Rated Voltage	230 VAC
Suitable For Use With	Protect The Systems Against The Transient Overvoltage (Lightning)
Version	Plug-in
Voltage Protection Level	1.4 kV
Weight	0.15 kg
Width	17.8 mm
