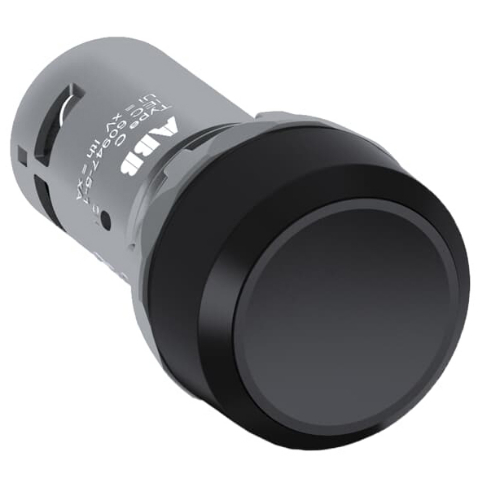

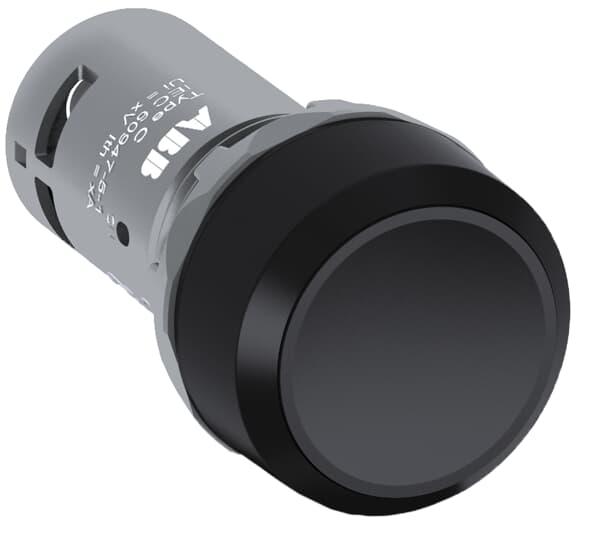

<p>The CP Series pushbutton is a reliable and robust solution for industrial and commercial applications. With its non-illuminated design, this pushbutton offers simplicity without compromising on functionality. The compact dimensions of 30 mm in width and height, along with a depth of 55 mm, make it an ideal fit for various control panels where space efficiency is crucial.</p><p>Engineered to withstand the rigors of demanding environments, this pushbutton boasts an impressive operational temperature range from -25 to 70 degrees Celsius. This ensures dependable performance across diverse conditions, whether in freezing cold or sweltering heat. Furthermore, it can be stored safely at temperatures as low as -40 degrees Celsius and as high as 85 degrees Celsius.</p><p>The device features a degree of protection rated at IP66, IP67, and IP69K for the front panel, ensuring it&#39;s dust-tight and resistant to powerful water jets—a perfect choice for harsh environments requiring stringent hygiene standards. Additionally, the terminal protection is rated at IP20.</p><p>With a rated frequency of 50/60 Hz and a rated insulation voltage of 300 V, this pushbutton meets rigorous safety standards including EN IEC 60947-1 and others relevant to electrical equipment. It also supports a rated impulse withstand voltage of up to 6 kV.</p><p>Installation is straightforward thanks to its screw terminal type with a tightening torque specification of 1 N-m. The connection capacity accommodates flexible wires with ferrules or insulated ferrules ranging from 0.5 to 1.5 square millimeters in size—both single or double wire configurations are supported—and solid wires within the same range.</p><p>Designed with user convenience in mind, the flush actuator type provides easy operation while maintaining an aesthetically pleasing appearance due to its sleek black button and bezel color scheme made from durable plastic materials.</p><p>This momentary function pushbutton features a contact configuration of one normally open (1NO) contact which supports a rated thermal current up to 5 A—ideal for low-power signaling tasks commonly found in automation systems.</p><p>In terms of enclosure types compatible with NEMA ratings such as NEMA 1,12 ,13 ,3R ,4 ,and even corrosion-resistant models like NEMA4X offer flexibility when integrating into existing setups that demand specific environmental protections without additional modifications needed during installation phases</p><p>Weighing only about eighteen grams (0 .018 kg), handling becomes effortless during assembly processes making sure no unnecessary strain occurs over prolonged usage periods especially important if frequent maintenance activities take place regularly involving multiple units simultaneously being serviced together within short timeframes maximizing overall productivity levels achieved throughout entire facilities utilizing these components daily basis effectively Manufacturer Part Number: CP</p>
