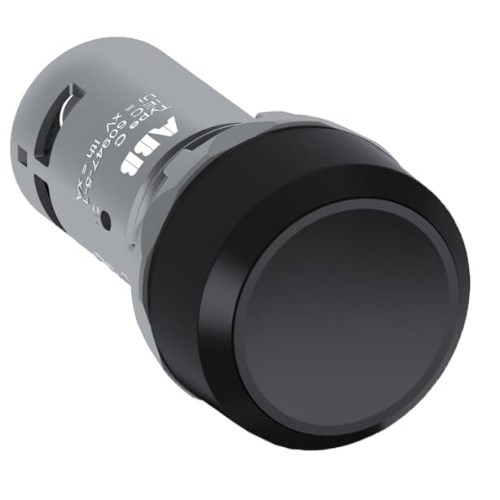

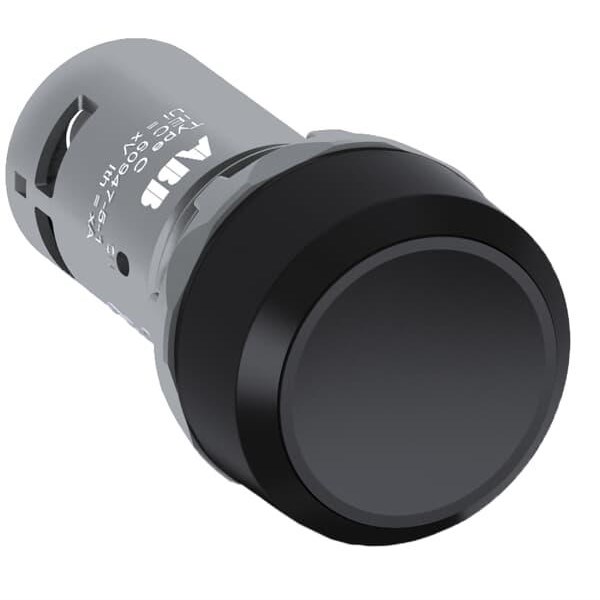

The CP Series Pushbutton is a robust and reliable choice for industrial and commercial applications, designed to meet the demands of various environments. With a standard size of 30 mm width and height, and a depth of 55 mm, this pushbutton is compact yet efficient. It operates seamlessly within a frequency range of 50/60 Hz.
This non-illuminated pushbutton features a flush actuator type with a momentary function, providing straightforward operation in control panels or machinery interfaces. The button itself is black, complemented by a matching black plastic bezel that ensures durability while maintaining an understated aesthetic.
Engineered to withstand harsh conditions, the pushbutton boasts an impressive degree of protection: IP66, IP67, and IP69K at the front, making it highly resistant to dust ingress and powerful water jets. The terminal side holds an IP20 rating for safe handling during installation. Additionally, its NEMA enclosure types include 1, 12, 13, 3R, 4, and 4X ratings.
The electrical specifications are equally commendable. It has a rated insulation voltage of up to 300 V with a rated thermal current capacity of 5 A. Furthermore, it can handle an impulse withstand voltage up to 6 kV—ideal for systems requiring high reliability in fluctuating power environments.
Designed with user convenience in mind, this pushbutton features screw-type terminals that support flexible connections both with ferrules (insulated or not) and solid wires ranging from 0.5 -1.5 sq-mm. The wire stripping length required is just 6 mm which facilitates quick setup without compromising on secure connections.
Temperature resilience is another highlight; it functions effectively between -25°C to +70°C operationally while offering storage capabilities from -40°C to +85°C—suitable for varied climatic conditions across Australia’s diverse regions.
With approvals from recognized standards such as EN IEC 60947 series (parts -1,-5-1,-5-5), EN IEC60073,and ENIEC60529,this product assures compliance with international safety regulations ensuring peace-of-mind deployment across different sectors.The contact configuration includes one normally open (NO)and one normally closed(NC)contact allowing versatile integration into existing systems.The tightening torque recommended stands at precisely1N-m ensuring optimal performance once installed.This lightweight component weighs only0 .022kg making it easy-to-handle during assembly processes.Whether you're upgrading existing setups or embarking on new installations,the CP Series Pushbutton offers dependable functionality tailored towards meeting rigorous technical requirements efficiently.
