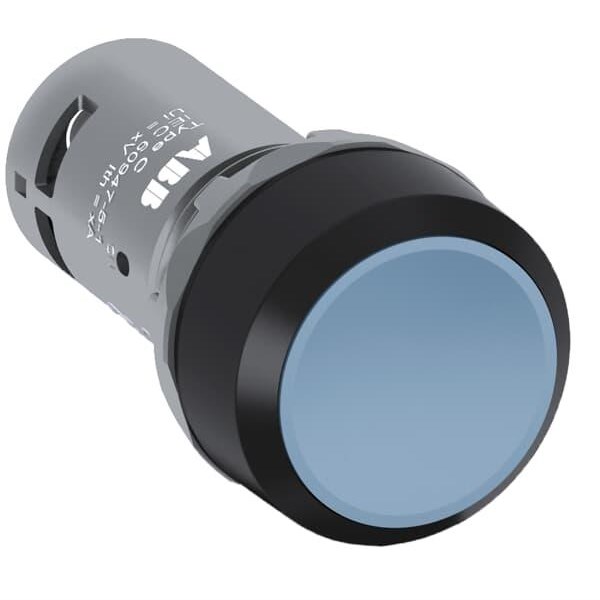

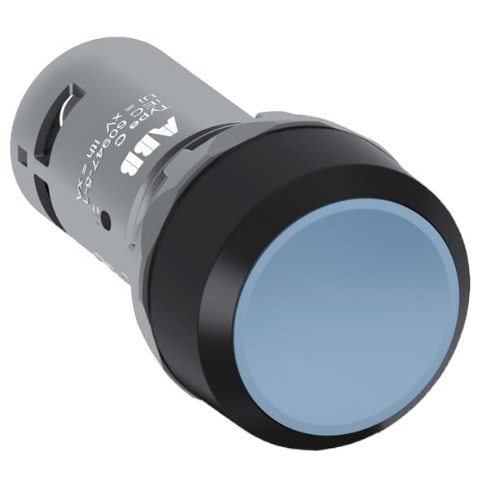

ABB CP1-10L-11 Compact Non-Illuminated Pushbutton Flush Momentary Blue 1NO+1NC Screw

Product Code: CP1-10L-11

  • Non-illuminated blue flush actuator
  • High protection: IP66/67/69K front, IP20 terminal
  • Wide temp range: -25 to 70°C operation
  • Durable plastic bezel in black
  • Momentary function with 1NO+1NC contacts
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO+1NC
Dimensions (mm) 30W X 30H X 55D
Maximum Operational Voltage DC (V) 300
Maximum Operational Voltage AC (V) 300
Operational Temperature Range (°C) -25 to +70
Rated Frequency (Hz) 50/60
Tightening Torque (Nm) 0.8
Rated Operational Current 240V AC (A) 1
Rated Operational Current 125V DC (A) 0.2
Rated Operational Current 24V DC (A) 0.3
Product Type Compact Pushbutton
Brand ABB
Series CP
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Colour Black
Bezel Material Plastic
Bezel Type Black Plastic
Button Colour Blue
Colour Blue
Connecting Capacity Flexible with Ferrule 1/2 x 0.5 - 1.5 sq-mm, Flexible with Insulated Ferrule 1/2 x 0.5 - 1.5 sq-mm, Flexible 1/2 x 0.5 - 1.5 sq-mm, Solid 1/2 x 0.5 - 1.5 sq-mm
Connection Type Screw
Contact Configuration 1NO+1NC
Degree of Protection IP66, 67, 69K Front, IP20 Terminal
Depth 55 mm
Enclosure Type NEMA 1, 12, 13, 3R, 4, 4X
Function Momentary
Height 30 mm
Illumination Non-Illuminated
Mode of Operation Momentary
Operational Temperature -25 to 70 deg C
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 300 V
Rated Thermal Current 5 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 1 N-m
Weight 0.022 kg
Width 30 mm
Wire Stripping Length 6 mm

Description

This Non-Illuminated Pushbutton has a Blue colour and features a Momentary Flush design. It is equipped with 1 Normally Open (NO) contact and 1 Normally Closed (NC) contact. The button is part of the Compact Range and has a Plastic bezel.
