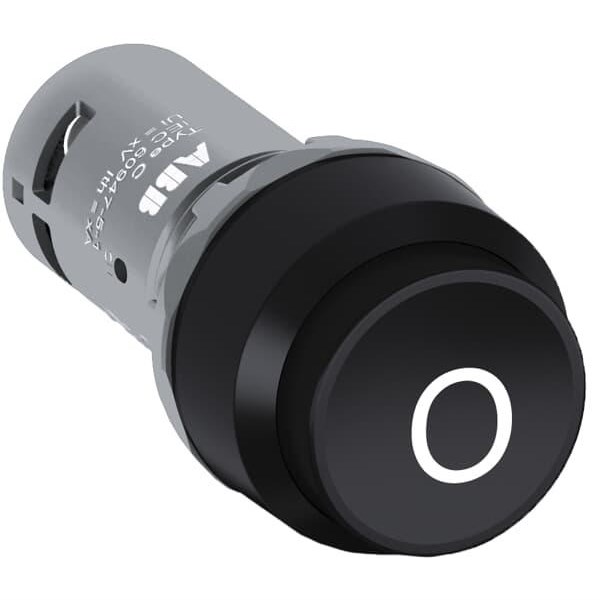

The CP Series non-illuminated momentary actuator is a robust and reliable choice for industrial and commercial applications, designed to meet the rigorous demands of various environments. With a compact size of 30 mm width, 30 mm height, and 55 mm depth, it fits seamlessly into systems where space is at a premium.
This actuator operates efficiently across a frequency range of 50/60 Hz, making it versatile for different electrical setups. It features an extended actuator type with a contact configuration of 1NC (normally closed), ensuring secure operations. The mechanical life boasts an impressive 0.5 million operations, providing long-term durability and reliability in repetitive use scenarios.
Rated for insulation voltage up to 300 V and an impulse withstand voltage of 6 kV, this product ensures safe operation under varying electrical conditions. It can handle a rated thermal current of up to 5 A, which is suitable for numerous control applications.
The environmental resilience of this product is noteworthy with an operational temperature range from -25 to 70 degrees Celsius and storage capability extending from -40 to 85 degrees Celsius. This makes it adaptable to both indoor and outdoor settings across diverse climates.
Safety and protection are paramount; hence the device offers front protection ratings of IP66, IP67, IP69K along with terminal protection at IP20. These ratings ensure resistance against dust ingress and high-pressure water jets—ideal for harsh environments or wash-down areas.
Installation is straightforward thanks to its screw terminal connection type that supports flexible wires with ferrules or solid wires ranging from 0.5 to 1.5 sq-mm in diameter. The tightening torque requirement stands at a precise 1 N-m while maintaining wire integrity through its design accommodating a stripping length of just 6 mm.
Compliant with international standards such as EN IEC 60947-1/-5-1/-5-5 among others, users can be assured about its quality adherence in terms of performance benchmarks globally recognized within the industry sector.
Its enclosure types include NEMA ratings: Type 1 (General purpose), Type12 (Industrial use), Type13 (Oil-tight), Type3R/4/4X (Weatherproof/corrosion-resistant)—providing flexibility depending on specific application needs whether indoors or exposed outdoor installations requiring additional protective measures against environmental factors like moisture or corrosive agents present around operational sites frequently encountered by field technicians working extensively outdoors over prolonged periods without compromising functionality whatsoever during their respective duties assigned accordingly per project specifications outlined beforehand adequately prepared accordingly prior commencement stages initiated subsequently thereafter smoothly executed until completion successfully achieved ultimately concluded satisfactorily overall experience delivered consistently throughout entire process lifecycle managed effectively end-to-end seamlessly integrated solution tailored precisely meeting exact customer requirements every time guaranteed satisfaction assured always
Manufacturer Part Number: CP
