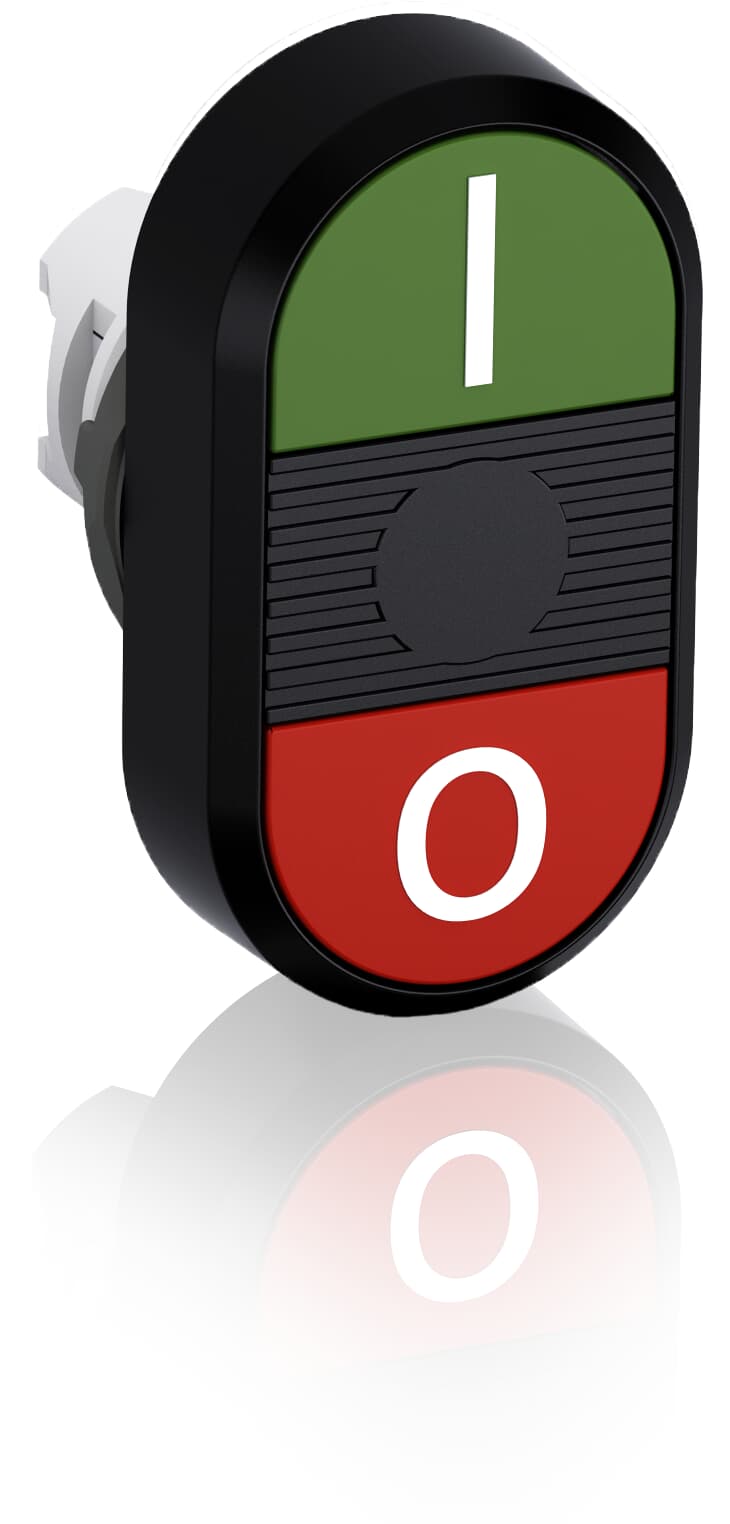

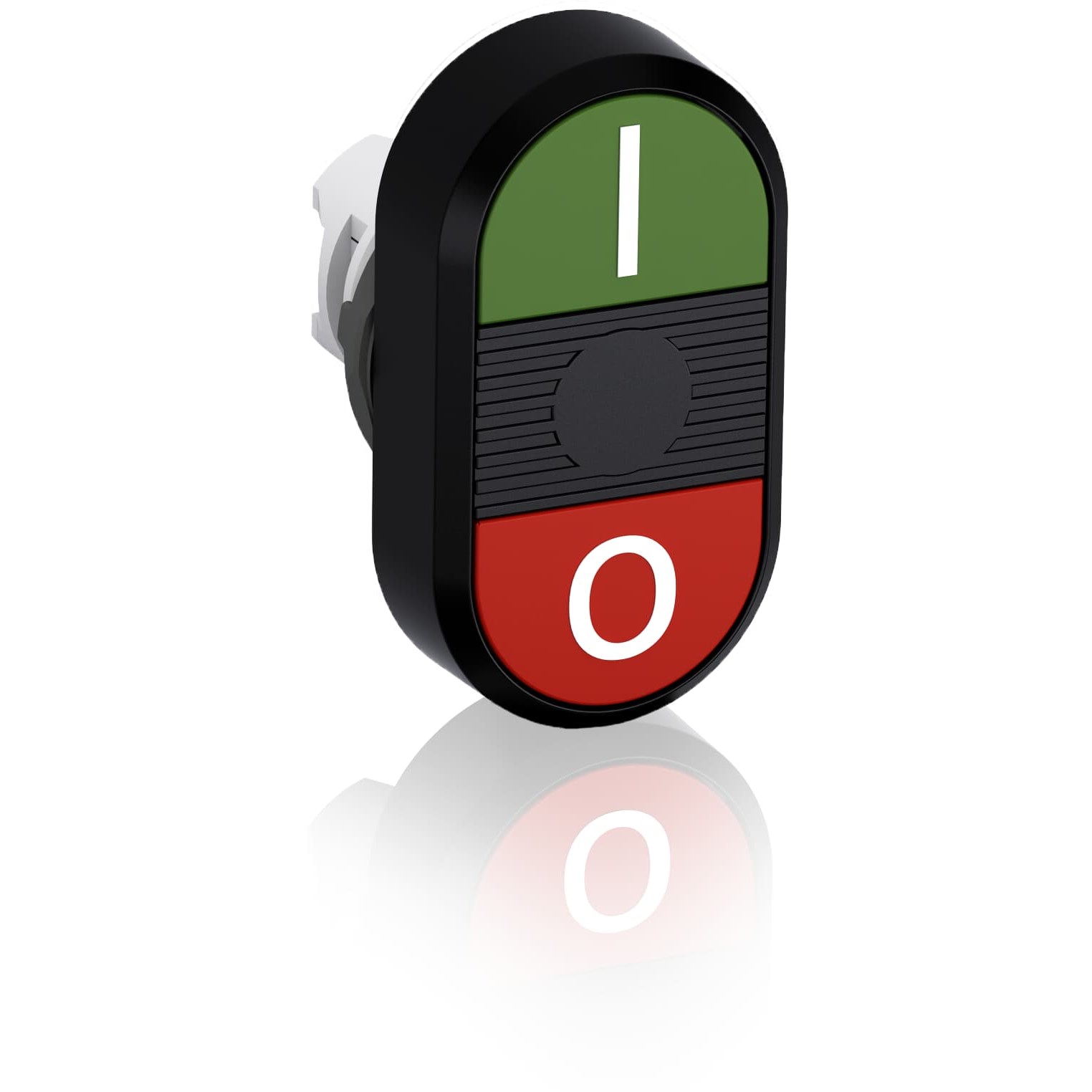

ABB MPD2-11B Non-Illuminated Double Pushbutton Flush Momentary I/O Green/Red

Product Code: MPD2-11B

  • Non-illuminated flush actuator pushbutton
  • IP66 rated for robust protection
  • Wide temp range: -25 to 70°C operation
  • Green 'I' and red 'O' legend indicators
  • NEMA 1, 12, 13, 3R, 4, 4X enclosure types
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 54W x 30H x 38D
Operational Temperature Range (°C) -25 to 70
Weight (kg) 0.025
Device Marking I - O
Storage Temperature Range (°C) -40 to 85
Enclosure Type (NEMA) Type1, Type12, Type13, Type3R, Type4, Type4X
Product Type Double Pushbutton
Brand ABB
Actuator Type Flush
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Green/Red
Degree of Protection IP66 Front
Depth 38 mm
Enclosure Type NEMA 1, 12, 13, 3R, 4, 4X
Function Momentary
Height 30 mm
Illumination Non-Illuminated
Includes Holder and Contact Block are not included
Legend I (Upper), O (Lower)
Material Bezel: Plastic
Mode of Operation Momentary
Operational Temperature -25 to 70 deg C
Range Modular Plastic
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Storage Temperature -40 to 85 deg C
Weight 0.025 kg
Width 54 mm
