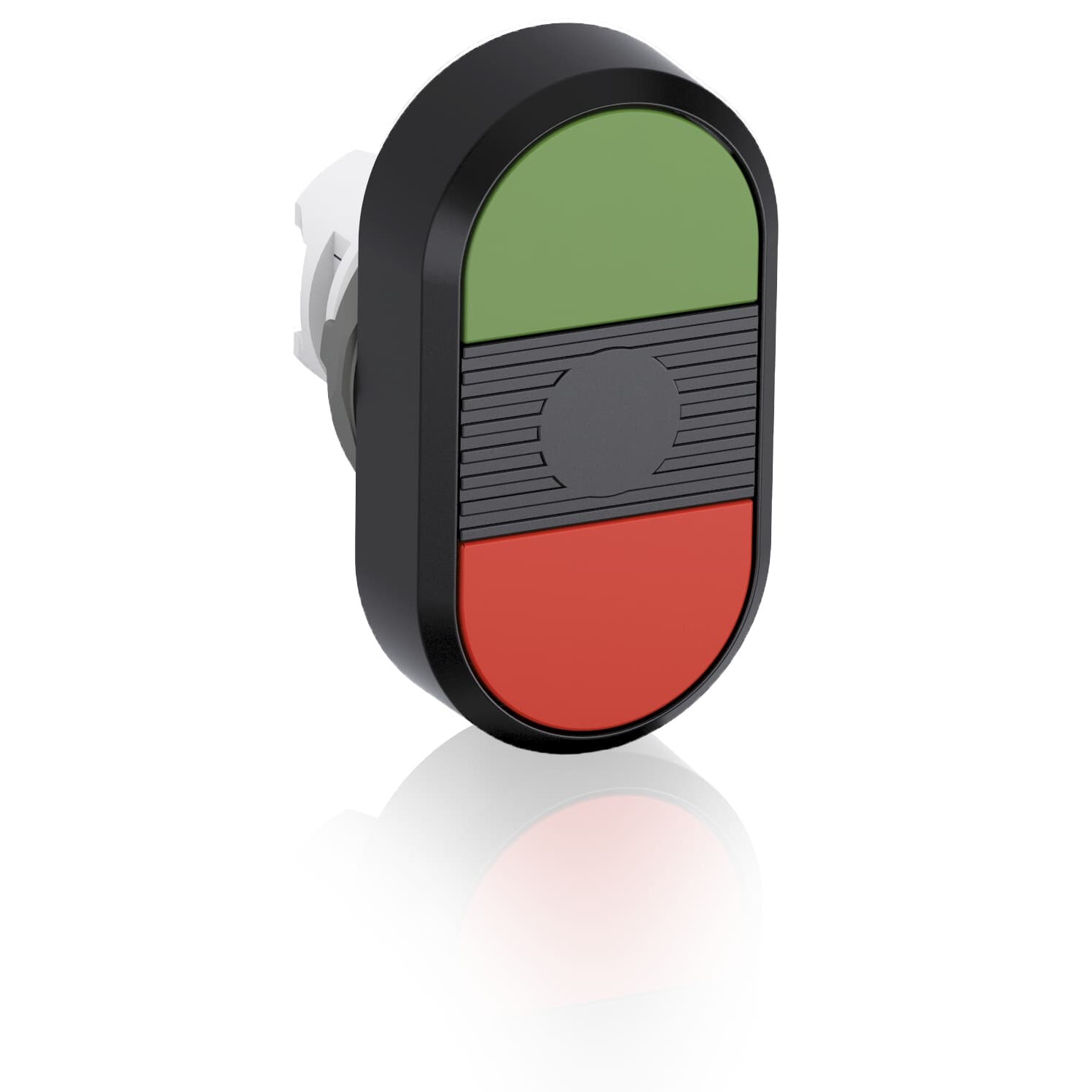

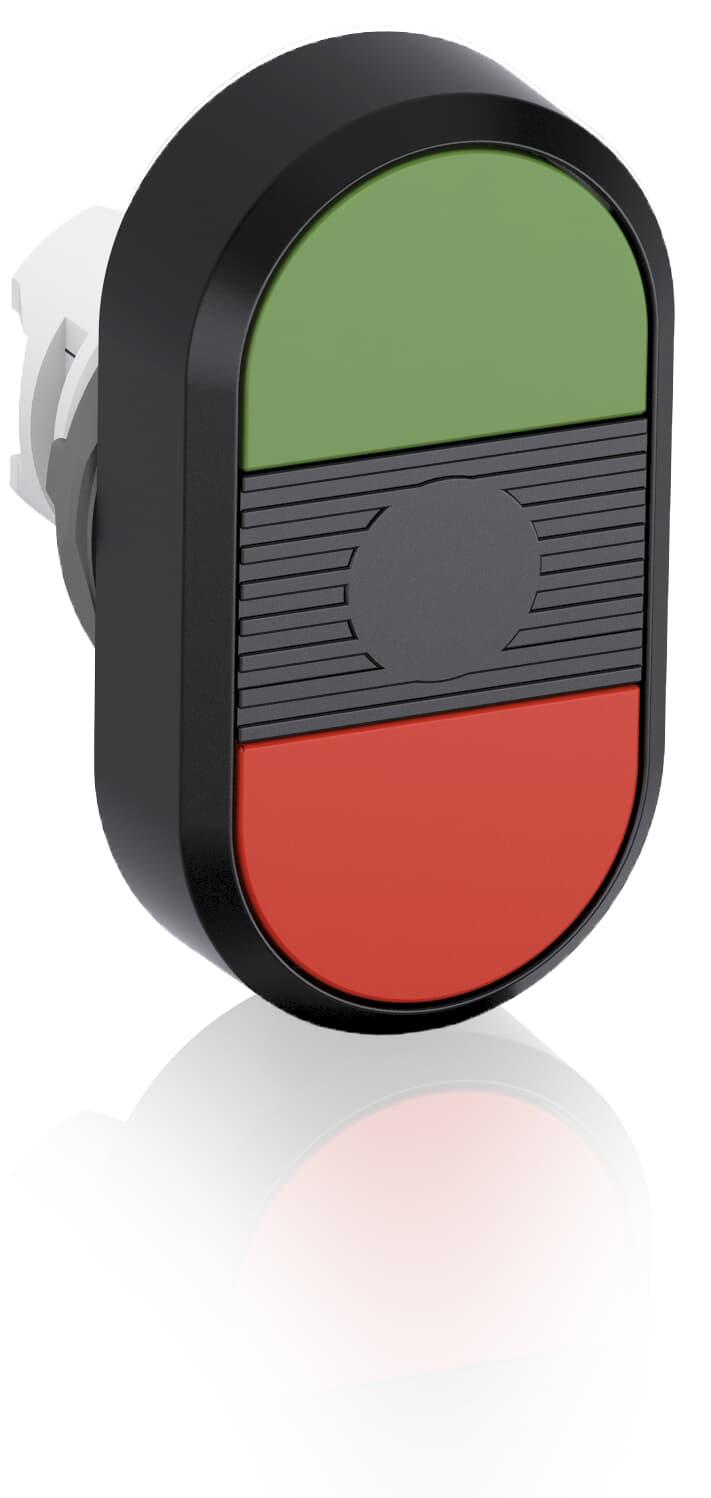

ABB MPD1-11B Non-Illuminated Double Pushbutton Flush Momentary Green/Red

Product Code: MPD1-11B

  • Non-illuminated flush actuator
  • IP66 front protection rating
  • Operates in -25 to 70°C range
  • NEMA 1, 12, 13, 3R, 4, 4X enclosure types
  • Green/Red button colours
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 54W x 30H x 38D
Operational Temperature Range (°C) -25 to 70
Weight (kg) 0.025
Storage Temperature Range (°C) -40 to 85
Enclosure Type (NEMA) Type1, Type12, Type13, Type3R, Type4, Type4X
Product Type Double Pushbutton
Brand ABB
Actuator Type Flush
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Green/Red
Degree of Protection IP66 Front
Depth 38 mm
Enclosure Type NEMA 1, 12, 13, 3R, 4, 4X
Function Momentary
Height 30 mm
Illumination Non-Illuminated
Includes Holder and Contact Block are not included
Legend No Text
Material Bezel: Plastic
Mode of Operation Momentary
Operational Temperature -25 to 70 deg C
Range Modular Plastic
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Storage Temperature -40 to 85 deg C
Weight 0.025 kg
Width 54 mm
