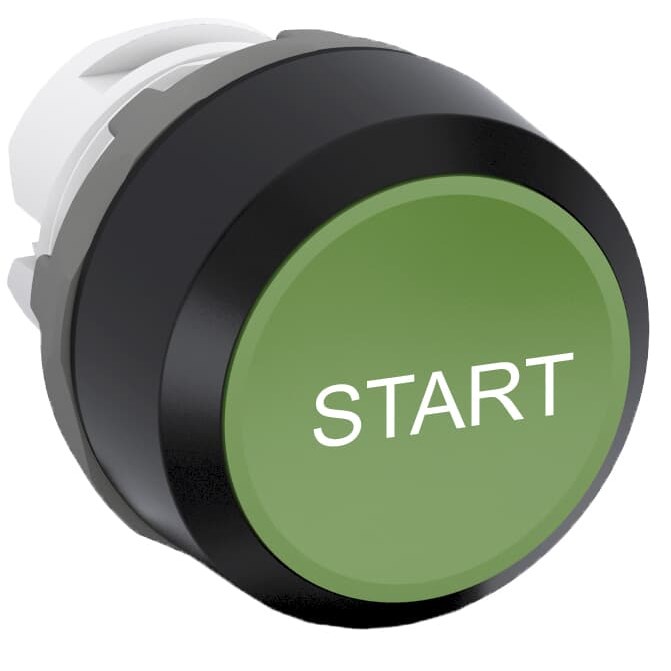

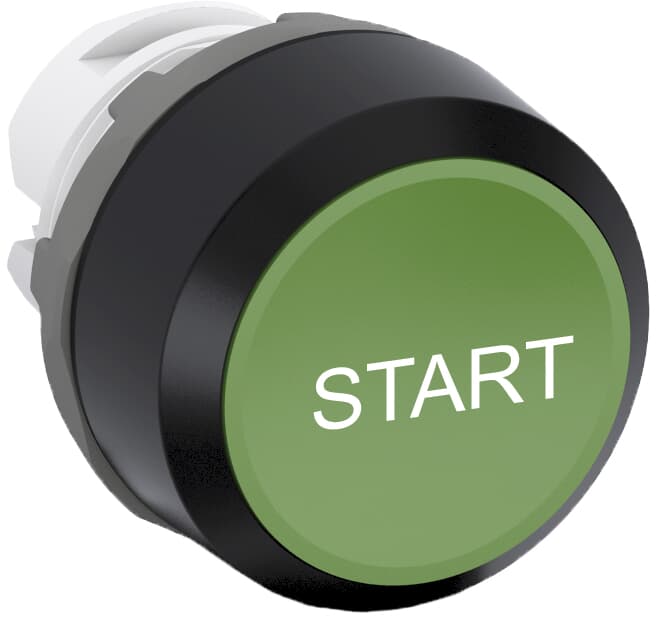

ABB MP1-7059 Non-Illuminated Pushbutton Flush Momentary Green

Product Code: MP1-7059

  • Non-illuminated, flush actuator design
  • IP66 front protection for durability
  • Operates in -25 to 70°C range
  • Screw terminal connection
  • 2 million mechanical operations
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 29W x 29H x 33D
Operational Temperature Range (°C) -25 to 70
Weight (kg) 0.011
Device Marking START
Storage Temperature Range (°C) -40 to 85
Enclosure Type (NEMA) Type1, Type12, Type13, Type3R, Type4, Type4X
Product Type Pushbutton
Brand ABB
Actuator Type Flush
Bezel Colour Black
Bezel Material Plastic
Button Colour Green
Colour Green
Degree of Protection IP66 Front
Depth 33 mm
Enclosure Type NEMA 1, 12, 13, 3R, 4, 4X
Function Momentary
Height 29 mm
Illumination Non-Illuminated
Includes Holder and Contact Block are not included
Material Bezel: Plastic
Mechanical Life 2 million Operations
Mode of Operation Momentary
Operational Temperature -25 to 70 deg C
Range Modular Plastic
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Weight 0.011 kg
Width 29 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
