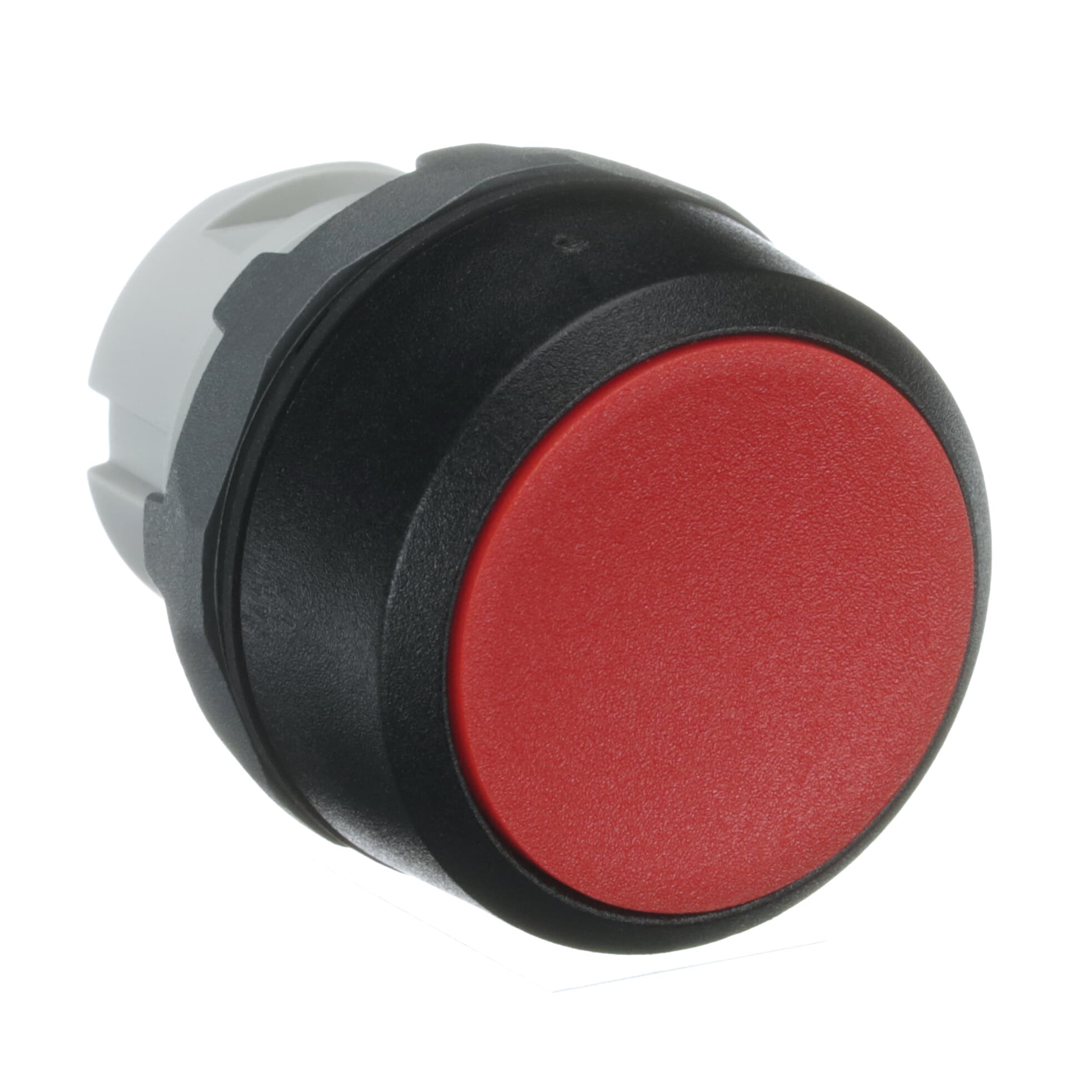

ABB MP2-10R Non-Illuminated Pushbutton Flush Maintained Red

Product Code: MP2-10R

  • Non-illuminated red flush actuator
  • IP66 front protection for durability
  • Operates in -25 to 70°C temperatures
  • Mechanical life of 2 million operations
  • Screw terminals for secure connections
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 29W x 29H x 33D
Weight (kg) 0.012
Operational Temperature Range (°C) -25 to 70
Storage Temperature Range (°C) -40 to 85
Enclosure Type (NEMA) Type1, Type12, Type13, Type3R, Type4, Type4X
Product Type Pushbutton
Brand ABB
Actuator Type Flush
Bezel Colour Black
Bezel Material Plastic
Button Colour Red
Colour Red
Degree of Protection IP66 Front
Depth 33 mm
Enclosure Type NEMA 1, 12, 13, 3R, 4, 4X
Function Maintained
Height 29 mm
Illumination Non-Illuminated
Includes Holder and Contact Block are not included
Material Bezel: Plastic
Mechanical Life 2 million Operations
Mode of Operation Maintained
Operational Temperature -25 to 70 deg C
Range Modular Plastic
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Weight 0.012 kg
Width 29 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
