Specifications

Dimensions (mm)	48W x 30H x 62D
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	2.5W Maximum
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	690
Rated Impulse Withstand Voltage (kV)	6
Rated Operational Current AC-15 240V (A)	6
Weight (kg)	0.043
Rated Operational Voltage (V)	690
Rated Operational Current DC-13 24V (A)	5
Storage Temperature Range (°C)	-40 to 85
No. of Normally-open Auxiliary Contacts	1
Wire Stripping Length (mm)	8
Enclosure Type (NEMA)	Type1, Type12, Type13, Type3R, Type4, Type4X

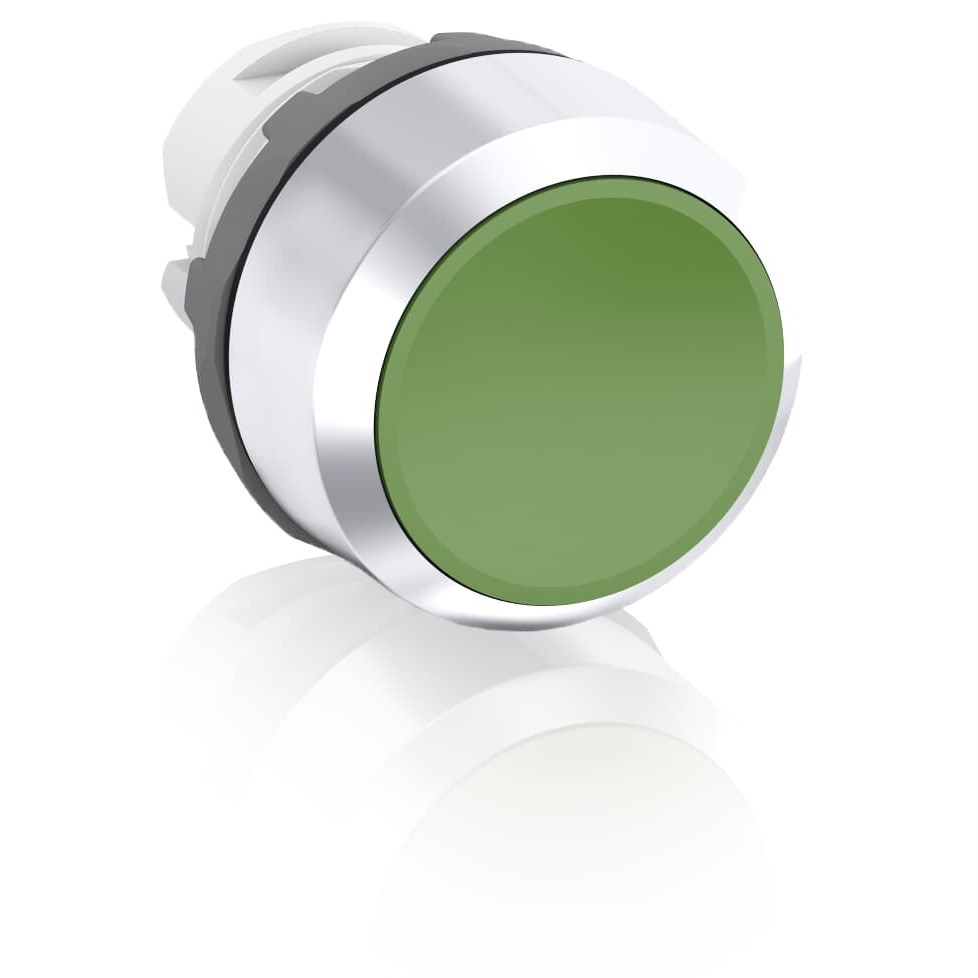

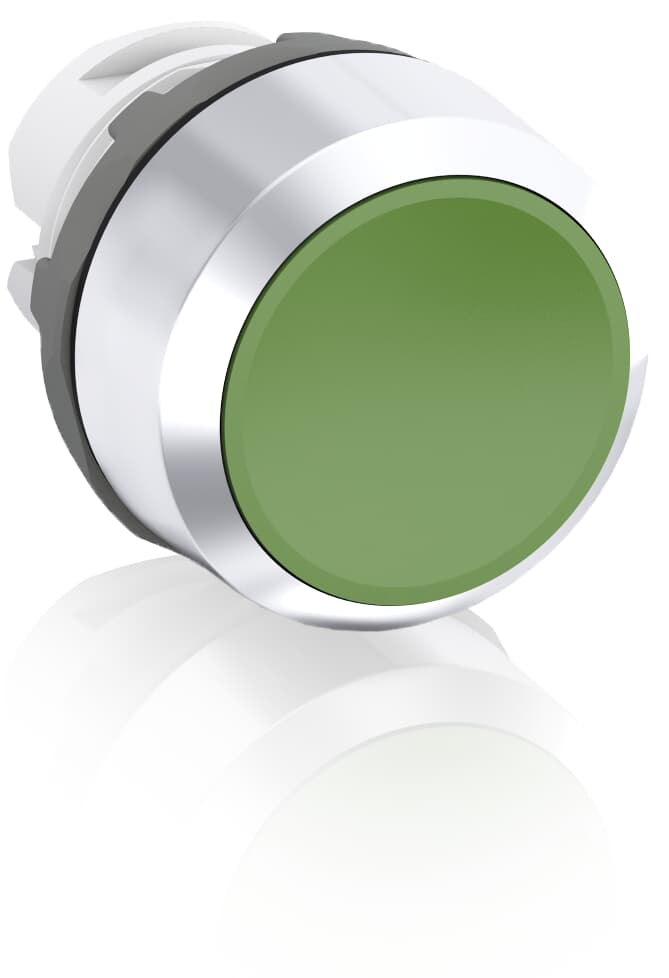

Product Type	Pushbutton
Brand	ABB
Actuator Type	Flush
Bezel Colour	Chrome
Bezel Material	Metal
Button Colour	Green
Colour	Green
Degree of Protection	IP66 Front, IP20 Terminal
Depth	62 mm
Enclosure Type	NEMA 1, 12, 13, 3R, 4, 4X
Function	Momentary
Height	30 mm
Illumination	Non-Illuminated
Includes	Holder and Contact Block are not included
Material	Bezel: Chrome Metal
Mechanical Life	2 million Operations
Mode of Operation	Momentary
Operational Temperature	-25 to 70 deg C
Range	Modular Plastic
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Storage Temperature	-40 to 85 deg C
Terminal Type	Screw
Weight	0.043 kg
Width	48 mm
Wire Stripping Length	8 mm
