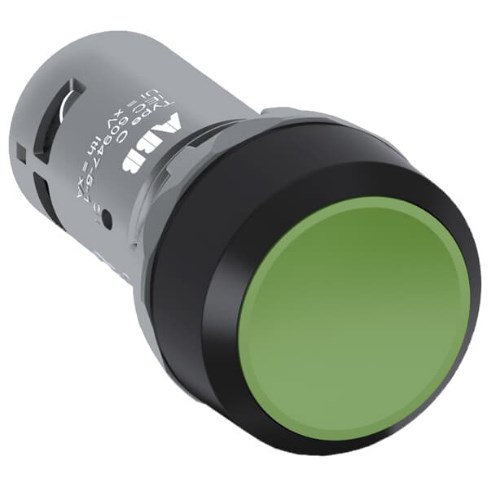

This pushbutton from the CP series is a reliable choice for industrial and commercial applications, designed to meet rigorous standards while providing ease of use. With a compact size of 30 mm in width and height, and a depth of 55 mm, it fits seamlessly into various control panels without taking up excessive space. Its flush actuator type ensures that the button remains unobtrusive yet accessible.
Built to withstand challenging environments, this pushbutton operates efficiently within an operational temperature range of -25 to 70 degrees Celsius, making it suitable for diverse Australian climates. The storage temperature extends even further from -40 to 85 degrees Celsius, ensuring durability during transportation or periods of inactivity.
The product boasts an impressive degree of protection with IP66, IP67, and IP69K ratings on the front side and IP20 at the terminal. This makes it highly resistant to dust ingress and water jets from any direction—ideal for both indoor and outdoor installations where exposure to harsh conditions is possible.
Engineered with safety in mind, this pushbutton meets several standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, and EN IEC 60529. These certifications ensure compliance with international safety regulations for electrical equipment.
Connection is straightforward via screw terminals designed for flexibility; they accommodate flexible wires with ferrules or insulated ferrules ranging from 0.5 to 1.5 sq-mm as well as solid wires within the same range. A wire stripping length of six millimeters simplifies installation by reducing preparation time.
The momentary function coupled with a contact configuration of one normally open (1NO) contact provides simple yet effective control options suited for applications requiring temporary activation such as start/stop operations in machinery or lighting systems.
Rated at a thermal current capacity of five amperes and featuring a rated insulation voltage up to 300 volts along with an impulse withstand voltage rating at six kilovolts enhances its robustness against electrical surges or short circuits—a critical factor when reliability cannot be compromised.
Aesthetically pleasing yet functional design elements include its green button color which stands out clearly against the black plastic bezel material—ensuring visibility while maintaining structural integrity under mechanical stressors like frequent pressing over time.
It aligns perfectly within NEMA enclosure types: NEMA Type 1 (general-purpose), Type 12 (industrial use), Type13 (oil-tight/dust-tight), Type3R (rainproof), Type4/4X (watertight/corrosion-resistant). This versatility allows deployment across varied installation scenarios without requiring additional protective measures beyond standard enclosures already present onsite.
