When it comes to selecting the right component for your industrial or commercial application, understanding the technical specifications is crucial. This product offers a robust set of features that ensure reliability and efficiency in demanding environments.
Starting with its dimensions, this unit measures 30 mm in width and height, with a depth of 55 mm. Its compact size makes it suitable for applications where space is at a premium. The device operates effectively within an ambient temperature range of -25 to 70 degrees Celsius, making it versatile enough for various climatic conditions. It can be stored safely between temperatures of -40 to 85 degrees Celsius.
The product's design ensures durability and longevity with a mechanical life rated at 0.5 million operations. This feature is particularly beneficial for high-use environments where frequent activation is required. The actuator type is extended, providing ease of use while maintaining functionality as a momentary switch.
Safety and protection are paramount in any electrical component, and this product meets several standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, and EN IEC 60529. It boasts an impressive degree of protection with IP66/67/69K on the front side and IP20 at the terminal end, ensuring resilience against dust ingress and powerful water jets—a necessity in rigorous settings.
The connection type utilizes screw terminals capable of handling flexible wires (with or without ferrule) ranging from 0.5 to 1.5 sq-mm as well as solid wires within the same range. The wire stripping length required is just 6 mm which aids in quick installations or replacements when needed.
Rated frequency stands at both standard frequencies of industrial applications: 50/60 Hz. With a rated insulation voltage of up to 300 V and an impulse withstand voltage rating at an impressive level of up to 6 kV—this product assures performance under sudden surges or spikes typically encountered during operation cycles.
For those concerned about operational current capacity—the rated thermal current sits comfortably at five amps (A), catering adequately across numerous low-power circuits commonly found within control panels or similar setups.

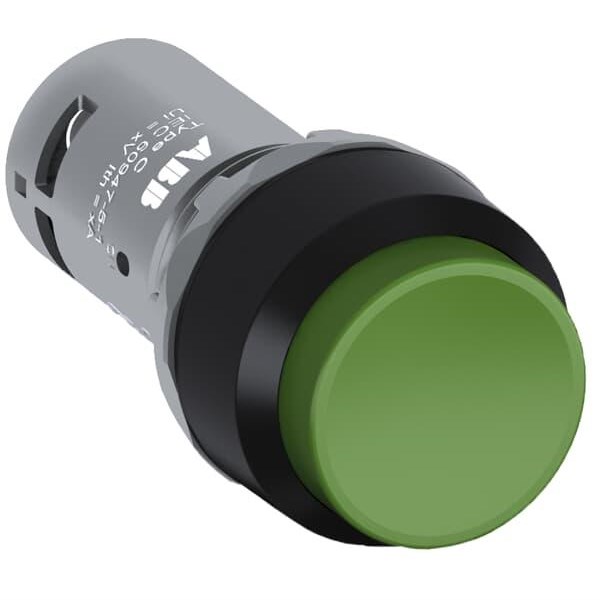

Furthermore—to complement its functional aspects—the button comes finished in green color housed behind sturdy plastic bezel material contributing not only aesthetically but adding another layer towards structural integrity against environmental factors like corrosion over time due primarily due being enclosed within NEMA types such as NEMA1 /12 /13 /3R /4 /4X enclosures respectively—all known widely throughout industry circles here down under!
Finally—installation simplicity remains forefront thanks largely due having standardized terminal type utilizing straightforward screw mechanisms requiring just one Newton meter torque setting upon assembly thus minimizing potential installation errors often associated otherwise complex systems elsewhere globally speaking!
