For professionals in the electrical and automation sectors, understanding the specifications of a product is crucial to ensuring it meets your technical requirements. This particular switch from the CP series offers a robust set of features suitable for various industrial and commercial applications.

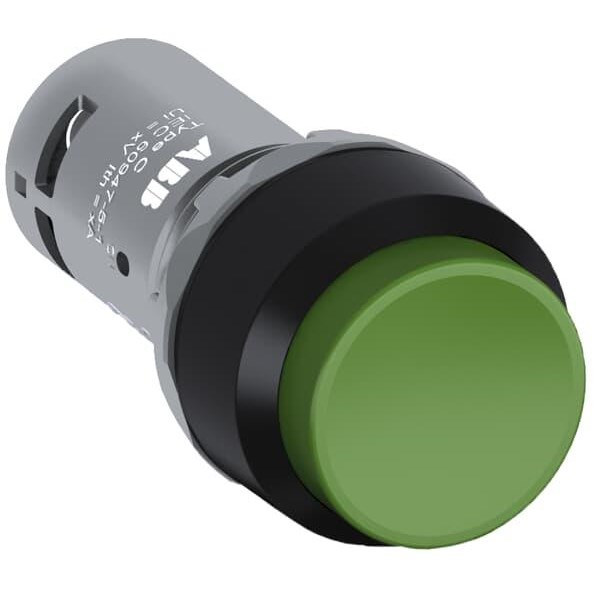

The switch operates at a rated frequency of 50/60 Hz and is designed as a non-illuminated model, featuring an extended actuator type. Its compact dimensions—30 mm in width and height, with a depth of 55 mm—make it suitable for installations where space is limited. The green button color provides clear visibility, aligning with standard operational color codes.
Durability is assured with its impressive degree of protection: IP66, IP67, IP69K on the front side ensures resistance against dust and high-pressure water jets from any direction. Meanwhile, the terminal's protection level stands at IP20. These ratings make it ideal for environments requiring high levels of ingress protection.
The switch complies with several standards including EN IEC 60947-1, 60947-5-1, 60947-5-5, EN IEC 60073, and EN IEC 60529. Such compliance guarantees reliability in performance across various conditions.
With an operating temperature range from -25 to 70 degrees Celsius and storage capabilities extending from -40 to 85 degrees Celsius, this switch can withstand harsh environmental conditions without compromising functionality. It also supports screw-type terminals that ensure secure connections; these are compatible with both flexible (with or without ferrules) and solid wires ranging from 0.5 to 1.5 sq-mm.
The mechanical life expectancy reaches up to half a million operations—a testament to its endurance in demanding settings. Rated insulation voltage is set at 300 V while its rated impulse withstand voltage peaks at an impressive 6 kV.
This momentary function switch accommodates a tightening torque of up to 1 N-m for secure installation. The wire stripping length requirement stands at just six millimeters which aids in quick setup processes.
Rated thermal current capacity reaches up to five amps making this device versatile enough for numerous applications within its enclosure types: NEMA standards include types 1,12,13 as well as outdoor-friendly options like types3R through4X—all encased within durable plastic bezels ensuring longevity even under challenging circumstances.
In summary this CP series device offers reliable performance backed by rigorous certifications extensive compatibility options alongside superior protection ratings—all contributing factors towards making informed decisions when selecting components suited perfectly towards your project needs.
