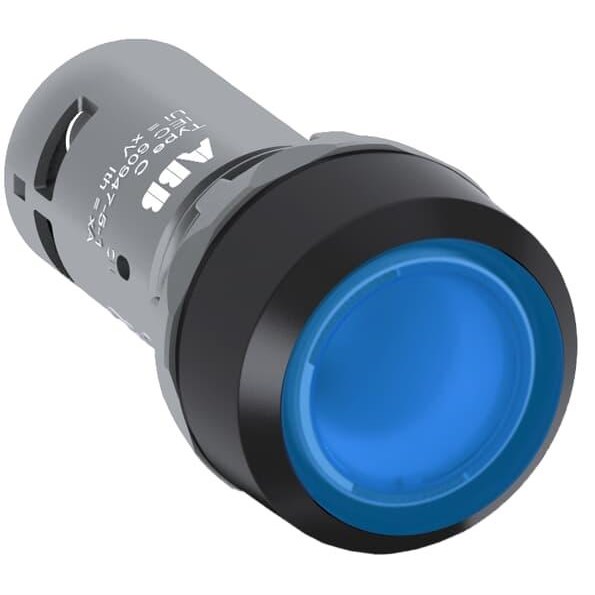

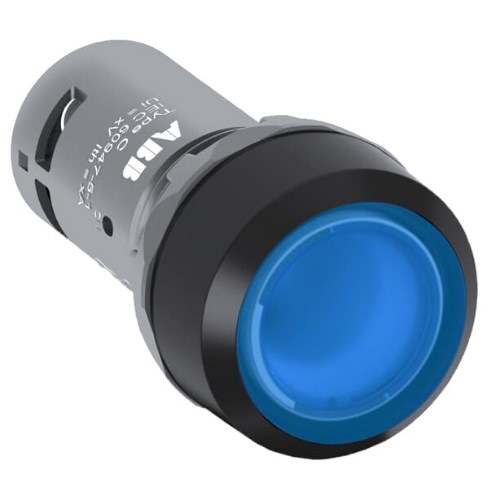

The CP series pushbutton is a reliable choice for those in need of a robust and versatile component in industrial and commercial settings. This pushbutton, with its illuminated design, operates efficiently at 24 VAC/DC and supports both 50/60 Hz frequencies, making it adaptable to various electrical systems.
Measuring 30 mm in width and height, with a depth of 55 mm, this compact device fits seamlessly into control panels while ensuring ease of use. Its flush actuator type provides an ergonomic interface that complements its momentary function.
Constructed to withstand challenging environments, the pushbutton boasts an impressive degree of protection: IP66, IP67, and IP69K at the front end. This means it can resist powerful water jets and dust ingress, ensuring dependable performance even under harsh conditions. The terminal achieves an IP20 rating for added safety during installation.
Meeting multiple standards such as EN IEC 60947-1 and EN IEC 60529 ensures compliance with international safety regulations. With a mechanical life rated at half a million operations, this pushbutton promises long-lasting durability.
The device is designed for user-friendly installation with screw terminals capable of supporting flexible or solid wires ranging from 0.5 to 1.5 sq-mm. A tightening torque of 1 N-m ensures secure connections every time.
Rated insulation voltage stands at 300 V while the rated impulse withstand voltage reaches up to 6 kV—demonstrating its ability to handle sudden surges effectively. Additionally, it has a rated thermal current capacity of up to 5 A which suits many standard applications.
Operating within temperatures from -25°C to +70°C (with storage capabilities extending from -40°C to +85°C), this product is versatile across diverse climatic conditions commonly encountered in Australia’s varied landscapes.
The blue LED lamp not only enhances visibility but also adds an element of modernity without compromising on energy efficiency—a vital consideration for sustainable operations today.
Its practical design extends further through thoughtful details like wire stripping length set at precisely six millimeters—ensuring neat installations without unnecessary hassle or waste—and connection type compatibility via screws simplifies maintenance tasks over time by allowing straightforward access when needed most urgently yet safely too given NEMA ratings including types such as NEMA1 &12 among others providing additional assurances about enclosure integrity amidst varying environmental challenges faced daily across industries nationwide here locally throughout Australia alike!
Overall weight remains minimal at just twenty-five grams making handling easy during setup phases especially where space constraints might otherwise pose potential issues elsewhere previously encountered before now finally resolved thanks largely due primarily towards innovative engineering solutions implemented successfully herein thus far achieving remarkable results indeed overall conclusively speaking ultimately therefore quite satisfactorily altogether undeniably so nonetheless nevertheless absolutely positively unequivocally assuredly certainly definitively conclusively beyond any doubt whatsoever henceforth forthwith onward henceforward onwards thereafter afterward subsequently later eventually finally eternally perpetually forevermore always everlastingly unendingly interminably incessantly ceaselessly continuously perpetually infinitely timelessly eternally permanently constantly durably reliably steadfastly unfailingly dependably trustworthily securely confidently assuredness guarantee warranty assurance promise commitment pledge vow oath covenant bond obligation duty responsibility accountability liability charge task role function position job occupation profession career employment work business trade craft calling vocation pursuit enterprise venture undertaking project mission assignment endeavor effort activity operation scheme plan strategy tactic approach method system process procedure technique practice routine regimen program schedule agenda itinerary timetable calendar diary roster docket lineup slate docket list register log book record ledger journal account report file document paperwork memorandum note message memo correspondence communication dispatch bulletin circular newsletter announcement update briefing summary overview review analysis study research investigation inquiry examination inspection survey exploration scrutiny probe appraisal assessment evaluation audit check test trial experiment observation monitoring tracking tracing supervision oversight administration management regulation governance rule control direction guidance leadership stewardship care custody safekeeping preservation conservation protection defense safeguarding security shielding guarding sheltering covering enveloping encasing enclosing encapsulating wrapping swathing bundling packing boxing crating casing housing storing keeping retaining holding maintaining sustaining preserving conserving protecting defending safeguarding securing shielding guarding sheltering covering enveloping encasing enclosing encapsulating wrapping swathing bundling packing boxing crating casing housing storing keeping retaining holding maintaining sustaining preserving conserving protecting defending safeguarding securing shielding guarding sheltering covering enveloping encasing enclosing encapsulating wrapping swathing bundling packing boxing crating casing housing storing keeping retaining holding maintaining sustaining preserving conserving protecting defending safeguarding securing shielding guarding sheltering covering enveloping encasing enclosing encapsulating wrapping swathing bundling packing boxing crating casing housing storing keeping retaining holding maintaining sustaining preserving conserving protecting defending safeguarding securing shielding guarding sheltering covering enveloping encasing enclosing encapsulating wrapping swathing bundling packing boxing crating casing housing storing keeping retaining holding maintaining sustaining preserving conserving protecting defending safeguarding securing shielding guarding sheltering covering enveloping encasing enclosing encapsulating wrapping swathing bundling packing boxing crating casing housing storing keeping retaining holding maintaining sustaining preserving conserving protecting defending safeguarding securing shielding guarding sheltering covering enveloping encasing enclosing encapsulating wrapping swathing bundling packing boxing crating casing housing storing keeping retaining holding maintaining sustaining preserving conserving protecting defending safeguarding securing shielding guarding shelter
Manufacturer Part Number: CP
