For those in the industrial and commercial sectors, selecting components that meet both practical and technical demands is crucial. This product offers a balanced combination of functionality and durability, making it suitable for various applications.
Operating at a rated voltage of 110-130 VAC/DC with a frequency range of 50/60 Hz, this component fits seamlessly into diverse electrical systems. Its compact dimensions—30 mm in width, height, and 55 mm depth—ensure it can be integrated without consuming excessive space. The operational temperature range from -25 to 70 degrees Celsius means it's built to withstand harsh environmental conditions.

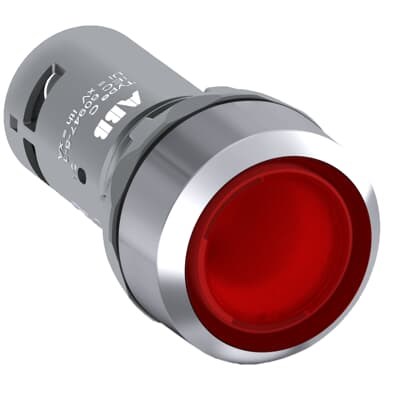

The product features an illuminated LED lamp in red, providing clear visibility even in dim settings. It boasts a robust degree of protection with IP66, IP67, and IP69K ratings on the front side and IP20 at the terminal level. Such ratings ensure resistance against dust ingress and water jets from multiple directions—a vital feature for demanding environments.
Standards compliance is another strength; it adheres to EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others, ensuring reliability across its lifecycle. Weighing just 0.039 kg makes it lightweight yet sturdy enough for long-term use.
Connectivity is straightforward with screw terminals designed for ease of installation using flexible or solid wires within the capacity range of 0.5 - 1.5 sq-mm. Tightening torque stands at an optimal 1 N-m ensuring secure connections while maintaining simplicity during assembly or maintenance tasks.
The flush actuator type adds to its sleek design while maintaining functional efficiency through a maintained function configuration with one normally closed (1NC) contact setup. Rated insulation voltage is pegged at 300 V while the rated impulse withstand voltage reaches up to an impressive 6 kV—indicating resilience against transient overvoltages.
With mechanical life extending up to half a million operations alongside a thermal current rating of up to five amperes (A), users can expect longevity paired with consistent performance over time under regular usage conditions.
Further enhancing its versatility are enclosure types compliant with NEMA standards including Type 1,12,13 as well as outdoor-friendly options like Types3R4and4X—all contributing towards comprehensive protective measures tailored specifically around user needs whether indoors or outdoors regardless if they face environmental challenges such as moisture exposure or corrosive elements typically found within industrial settings today!
Incorporating these features into your system ensures not only adherence but exceeding basic requirements offering peace-of-mind knowing you’ve chosen wisely when considering all pertinent factors needed before finalizing decisions related directly back onto operational efficiencies overall!
