This industrial-grade product is designed for those who require reliability and precision in their electrical systems. Operating seamlessly on a rated voltage of 24 VAC/DC, it accommodates both 50 Hz and 60 Hz frequency environments, making it versatile for various applications. Its compact dimensions—30 mm in width, 30 mm height, and a depth of 55 mm—allow for easy integration into existing systems without requiring significant space.

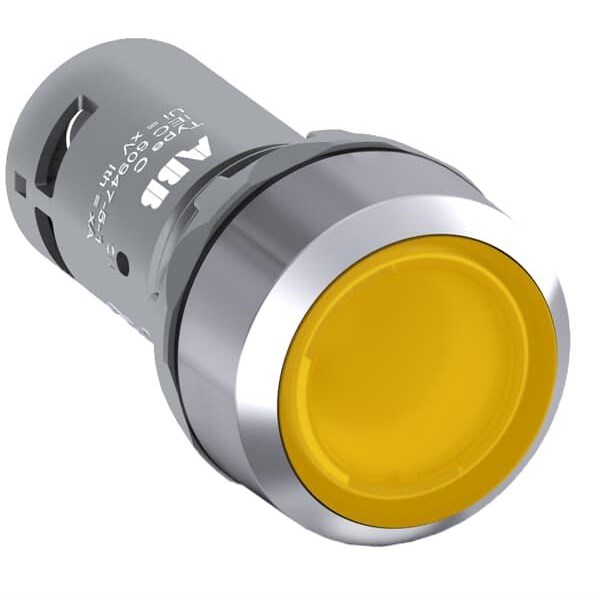

One of the standout features is its illumination capability. Equipped with a yellow LED lamp, this product ensures clear visibility even in low-light conditions. The flush actuator type provides an ergonomic design that supports momentary function operations. With a contact configuration of 1NC (normally closed), it’s suitable for applications needing reliable control.
Durability is assured with an impressive mechanical life span of up to half a million operations. This robustness extends to its environmental resilience; the device operates efficiently within temperatures ranging from -25°C to 70°C and can be stored safely between -40°C and 85°C.
Safety and protection are paramount, as evidenced by its high degree of protection ratings: IP66, IP67, IP69K at the front ensures resistance against dust ingress and powerful water jets while IP20 safeguards the terminals. Additionally, it meets several standards including EN IEC 60947-1/5-1/5-5 and EN IEC 60073/60529.
The connection system utilizes screw terminals capable of handling flexible wires with ferrules or solid wires ranging from 0.5 sq-mm to 1.5 sq-mm cross-section area. The recommended wire stripping length is set at 6 mm for optimal connection security.
Rated insulation voltage stands at an impressive 300 V with a rated impulse withstand voltage reaching up to 6 kV which indicates strong resilience against transient overvoltages—a critical factor in maintaining circuit integrity during unexpected spikes.
Its enclosure complies with NEMA types: NEMA 1,12,13 ensuring protection against dusts oils coolants NEMA types:3R offering outdoor protection against rain sleet snow ice formation NEMA types:4X providing additional corrosion resistance ideal for harsh environments
With a tightening torque specification of precisely one newton-meter (N-m) during installation users can ensure secure connections minimizing risks associated with loose fittings
Weighing just under forty grams (0.039 kg) it's lightweight yet durable thanks largely due its plastic bezel material contributing towards overall efficiency without compromising structural integrity Series CP
