When considering components for your industrial or commercial projects, the right choice can make all the difference in performance and reliability. This particular product offers a blend of robust design and precise functionality, making it a suitable option for various applications.
Operating at a rated voltage of 230 VAC/DC with a frequency range of 50/60 Hz, this device is versatile enough to fit into most standard electrical systems. The illuminated feature enhances visibility, which is particularly useful in low-light environments, while its compact dimensions—30 mm width, 30 mm height, and 55 mm depth—ensure it fits seamlessly into your setup without demanding excessive space.
Temperature resilience is another highlight. With an operational temperature range from -25 to 70 degrees Celsius and storage capabilities extending from -40 to 85 degrees Celsius, it's built to endure harsh conditions without compromising on performance. The IP66/67/69K front protection rating ensures that the unit is dust-tight and protected against powerful water jets and steam cleaning processes. Meanwhile, the IP20 terminal rating prioritizes safety during installation.
The mechanical life expectancy of half a million operations underscores its durability in demanding settings. It features a screw terminal type with a tightening torque of 1 N-m, supporting both flexible (with ferrule) and solid wire connections ranging from 0.5 to 1.5 sq-mm diameter—a testament to its adaptability across different wiring needs.
With standards conforming to EN IEC specifications like EN IEC 60947-1 through EN IEC 60529, you can be assured of compliance with international safety and quality benchmarks. The rated insulation voltage stands at an impressive 300 V with an impulse withstand voltage up to 6 kV.

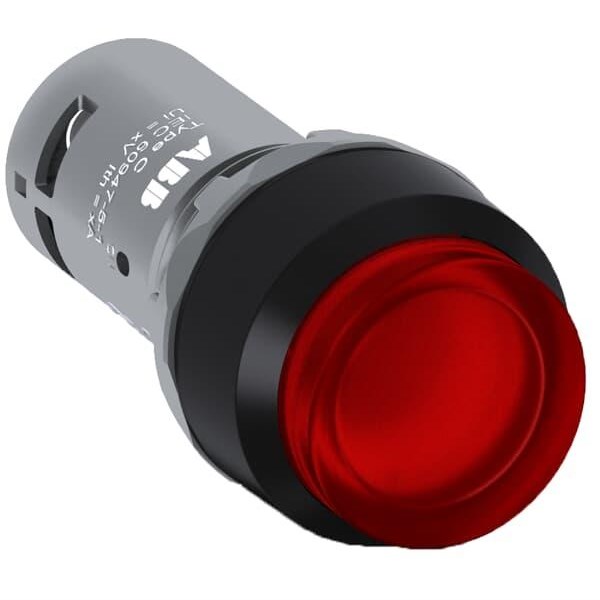

Its actuator type is extended with maintained function operation style—ideal for applications where consistent engagement is necessary—and features a red LED lamp for clear indication purposes.
Weighing just about 0.025 kg makes handling easy during installation or maintenance tasks. Its enclosure types include NEMA ratings such as NEMA 1/12/13/3R/4/4X which offer varying levels of protection against environmental factors like dirt or moisture intrusion.
Finally, the bezel material composed of plastic provides both lightweight construction and resistance against corrosion over time—a practical choice for long-term use in diverse settings within Australia’s varied climates.
Series: CP
