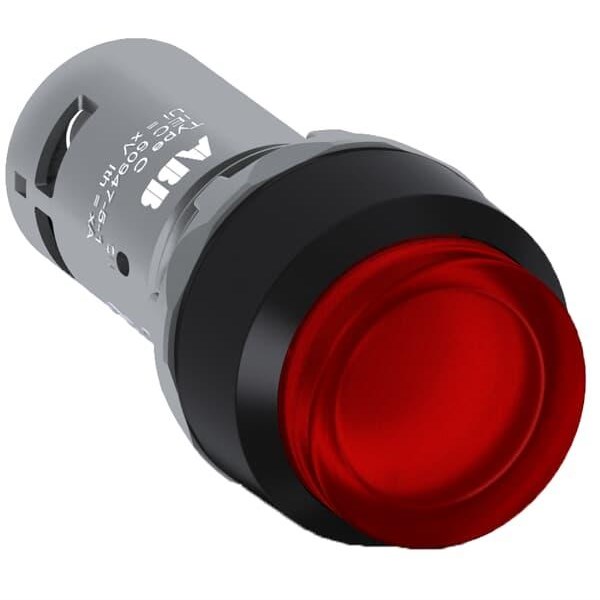

The CP series product is designed for professionals who require reliable and robust components in industrial and commercial applications. With a rated voltage of 230 VAC/DC and operational frequency of 50/60 Hz, this unit ensures compatibility with standard power systems. The illumination feature, powered by a red LED lamp, provides clear visibility and status indication.
Measuring 30 mm in width and height, with a depth of 55 mm, the compact design allows for space-efficient installation without compromising performance. This product operates efficiently across a wide temperature range from -25 to 70 degrees Celsius, making it suitable for various environmental conditions.
The device features screw terminals requiring a tightening torque of 1 N-m for secure connections. It supports multiple connection types including flexible wires with ferrules or insulated ferrules (0.5 - 1.5 sq-mm), as well as solid wires within the same range. A wire stripping length of 6 mm is recommended to ensure optimal connectivity.
Engineered with an IP66/67/69K front degree of protection and IP20 at the terminal level, it offers excellent resistance against dust ingress and high-pressure water jets—ideal for demanding settings that require stringent protection standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, and EN IEC 60529 compliance.
Weighing just 0.025 kg, this lightweight component does not add significant load to your setup while offering mechanical durability up to half a million operations under normal usage conditions. Its rated insulation voltage stands at an impressive 300 V with an impulse withstand voltage rating of up to 6 kV ensuring safe operation under transient overvoltage conditions.
The actuator type is extended which facilitates easy handling during operation while maintaining functionality through its maintained function contact configuration (1NO) supporting up to a rated thermal current of five amperes (5 A).
Designed according to NEMA enclosure types including NEMA Type:1;12;13;3R;4;4X—this product can be deployed in diverse environments ranging from indoor protected areas to outdoor locations exposed directly or indirectly subjected harsh weather elements thanks largely due its plastic bezel material construction enhancing corrosion resistance properties significantly over time even when stored between temperatures -40°C up till +85°C without any adverse effects on performance integrity levels whatsoever!
