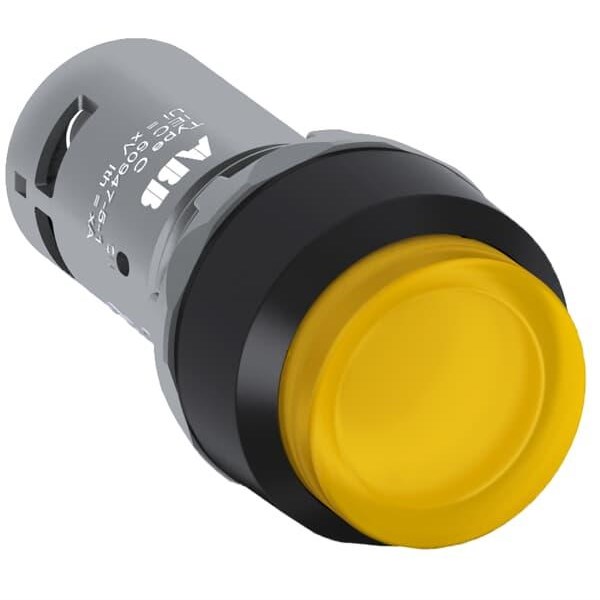

When considering a robust and reliable illuminated switch for industrial or commercial applications, this particular product from the CP series stands out as a solid choice. Designed with both functionality and durability in mind, it is suitable for various environments thanks to its comprehensive protection ratings and versatile specifications.
Operating at a rated voltage of 24 VAC/DC with a frequency of 50/60 Hz, this switch ensures compatibility across different systems. The illumination feature, highlighted by its yellow LED lamp, enhances visibility and operational efficiency in dimly lit areas. With dimensions of 30 mm in width and height, along with a depth of 55 mm, it maintains a compact form factor that fits seamlessly into control panels without occupying excessive space.
The product is engineered to withstand challenging conditions with an operational temperature range from -25 to 70 degrees Celsius, making it suitable for diverse climates. Its storage temperature capability extends even further from -40 to 85 degrees Celsius. The IP66, IP67, and IP69K front protection ratings ensure resilience against dust ingress and high-pressure water jets while the terminal side holds an IP20 rating.
It meets rigorous standards set by EN IEC regulations (60947-1, 60947-5-1, 60947-5-5), ensuring compliance with international safety norms. The mechanical life expectancy reaches up to half a million operations which speaks volumes about its reliability over extended periods.
For ease of installation and maintenance, the switch features screw terminals capable of handling flexible wires with ferrules ranging from 0.5 to 1.5 square millimeters as well as solid wires within the same range. A wire stripping length of six millimeters is recommended for optimal connection integrity.
The actuator type is extended which provides user-friendly interaction while maintaining functionality through maintained operation mode—ideal for applications requiring continuous engagement until manually reset.
Rated insulation voltage stands at 300 V complemented by an impressive rated impulse withstand voltage of six kilovolts offering additional protection against transient voltages—a critical factor in safeguarding sensitive equipment connected downstream.
Its enclosure adheres to NEMA standards (1/12/13/3R/4/4X) providing flexibility across multiple application scenarios whether indoor or outdoor exposure is anticipated; further reinforced by plastic bezel material contributing lightweight yet sturdy construction weighing only .025 kg overall weight allowing effortless integration into existing setups without structural compromise on panel designs where minimal load-bearing capacity may be present yet still demanding high-performance expectations typical within Australian industrial landscapes today!
