Specifications

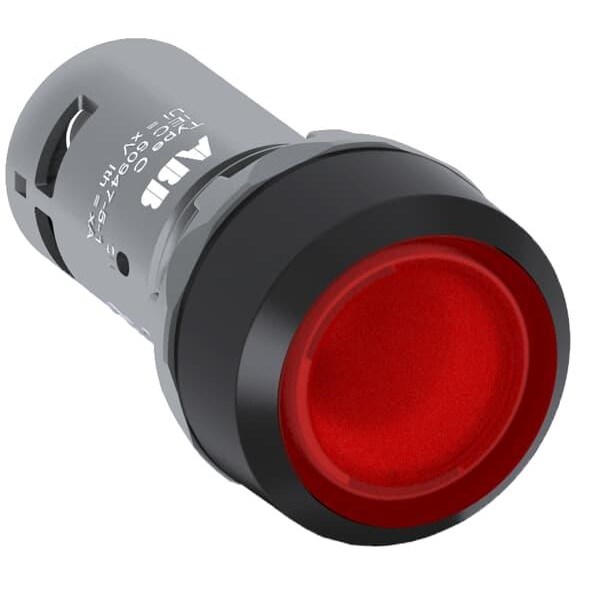

Product Type	Compact Pushbutton
Brand	ABB
Series	CP
Actuator Type	Flush
Ambient Temperature	-25 to 70 deg C
Bezel Material	Plastic
Connecting Capacity	Flexible with Ferrule 1/2 x 0.5 - 1.5 sq-mm, Flexible with Insulated Ferrule 1/2 x 0.5 - 1.5 sq-mm, Flexible 1/2 x 0.5 - 1.5 sq-mm, Solid 1/2 x 0.5 - 1.5 sq-mm
Connection Type	Screw
Contact Configuration	1NO
Degree of Protection	IP66, 67, 69K Front, IP20 Terminal
Depth	55 mm
Enclosure Type	NEMA 1, 12, 13, 3R, 4, 4X
Function	Momentary
Height	30 mm
Illumination	Illuminated
Lamp Colour	Red
Lamp Type	LED
Mechanical Life	0.5 million Operations
Operational Temperature	-25 to 70 deg C
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	300 V
Rated Thermal Current	5 A
Rated Voltage	110-130 VAC/DC
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529
Storage Temperature	-40 to 85 deg C
Terminal Type	Screw
Tightening Torque	1 N-m
Weight	0.025 kg
Width	30 mm
Wire Stripping Length	6 mm
