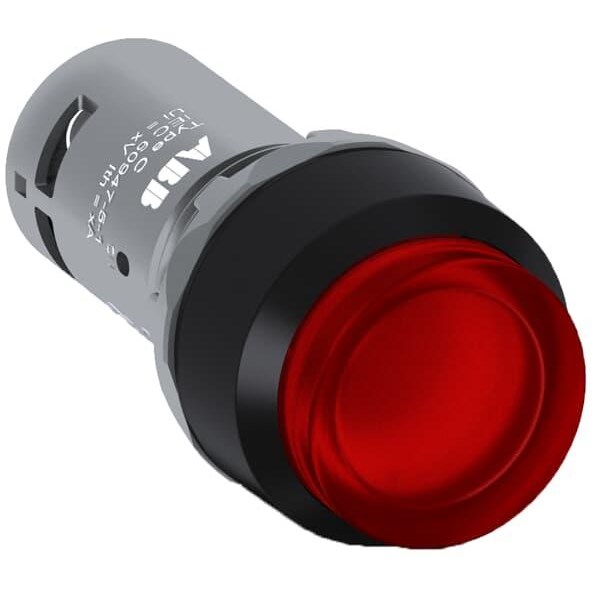

The CP Series industrial component is a robust and versatile solution designed to meet the demanding needs of various technical environments. Operating within a rated voltage of 110-130 VAC/DC and supporting both 50/60 Hz frequencies, this product ensures compatibility with standard power systems. Its illuminated design, featuring a red LED lamp, provides clear visibility in diverse conditions.
With dimensions of 30 mm in width and height, and a depth of 55 mm, this compact unit fits seamlessly into limited spaces while maintaining functionality. The component is engineered to withstand operational temperatures ranging from -25°C to 70°C, making it suitable for use in both cold and hot climates. It boasts an impressive storage temperature range from -40°C to 85°C, ensuring reliability during transport or when not in active use.
Built with durability in mind, the device features an IP66, IP67, and IP69K degree of protection on the front side and an IP20 rating at the terminal level. This makes it resistant to dust ingress as well as high-pressure water jets from any direction. Compliance with standards such as EN IEC 60947-1 through EN IEC 60529 further underscores its safety credentials.
The mechanical life of up to half a million operations highlights its longevity under frequent use scenarios. The momentary function type combined with an extended actuator ensures responsive operation whenever needed. For electrical connections, the screw terminal type allows for secure attachment with a tightening torque of 1 N-m.
Designed for flexibility in wiring configurations, it accommodates various wire types including flexible wires with ferrules (insulated or not) and solid wires ranging from 0.5 sq-mm to 1.5 sq-mm cross-sectional areas. The recommended wire stripping length is set at 6 mm for optimal connectivity.
Rated insulation voltage stands at 300 V while the rated impulse withstand voltage reaches up to 6 kV providing robust electrical performance under transient conditions. With a rated thermal current capacity of up to 5 A, this product can handle moderate power loads effectively.
Constructed with a plastic bezel material that aligns well within NEMA enclosure types such as NEMA 1 through NEMA 4X including outdoor applications like NEMA Type 3R enclosures; it offers versatility across different installation settings.
This detailed specification confirms that the CP Series product is built for those who prioritize efficiency without compromising on quality or safety standards—a reliable choice for professionals seeking dependable performance across industrial applications.
