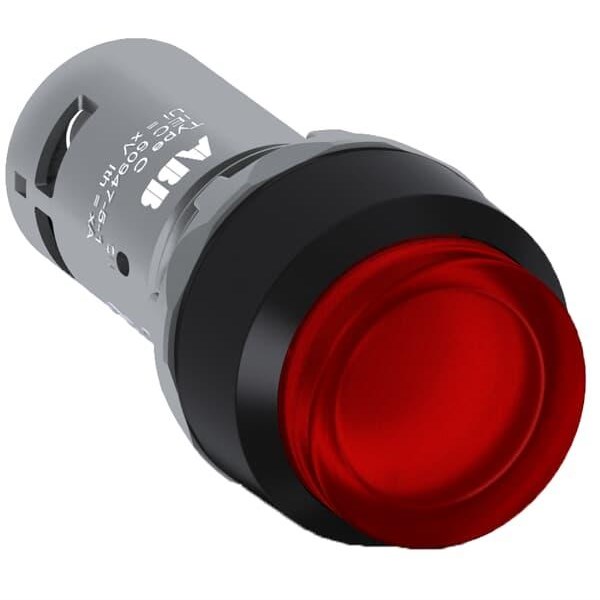

The CP Series product is designed to meet the rigorous demands of industrial and commercial environments, offering a reliable and robust solution for your technical requirements. Operating at a rated voltage of 230 VAC/DC and a frequency of 50/60 Hz, this unit ensures compatibility with standard electrical systems.
Measuring 30 mm in both width and height, with a depth of 55 mm, its compact form factor allows for easy integration into various systems without occupying excessive space. The illuminated feature enhances visibility, making it suitable for environments where clear status indication is essential.
This product boasts an impressive operational temperature range from -25 to 70 degrees Celsius, ensuring consistent performance across diverse conditions. It features screw terminals with a tightening torque of 1 N-m, providing secure connections that withstand mechanical stresses. The connection type supports flexible wires with ferrules or insulated ferrules ranging from 0.5 to 1.5 sq-mm, as well as solid wires within the same range.
With an IP66, IP67, and IP69K degree of protection on the front side and IP20 protection at the terminal level, this device is safeguarded against dust ingress and powerful water jets—ideal for harsh operating environments. Additionally, it complies with several standards including EN IEC 60947-1 and EN IEC 60529 among others.
Weighing just 0.025 kg, it's lightweight yet durable enough to handle up to half a million mechanical operations due to its extended actuator type design which provides momentary function capability.
Rated insulation voltage stands at 300 V while its impulse withstand voltage reaches up to an impressive level of 6 kV—indicative of its ability to endure transient overvoltages effectively without compromising safety or functionality.
For those concerned about environmental adaptability during storage periods—the storage temperature spans from -40 up till +85 degrees Celsius ensuring no degradation occurs when not in use over prolonged durations if stored correctly according manufacturer guidelines provided herewith above mentioned specifications list detailed earlier regarding other aspects such as lamp color being red LED type etcetera all contributing towards overall reliability aspect associated alongside aforementioned factors previously discussed herein text above written thus far today!
Finally; encapsulated within plastic bezel material construction coupled alongside NEMA enclosure ratings (1 through12 & beyond) further enhance protective measures taken during manufacturing process stage itself thereby guaranteeing long-lasting service life expectancy anticipated by end-users alike seeking dependable solutions tailored specifically toward meeting their unique needs head-on every single time they choose opt-in favor utilizing these products offered under current series lineup available now worldwide marketspace today!
