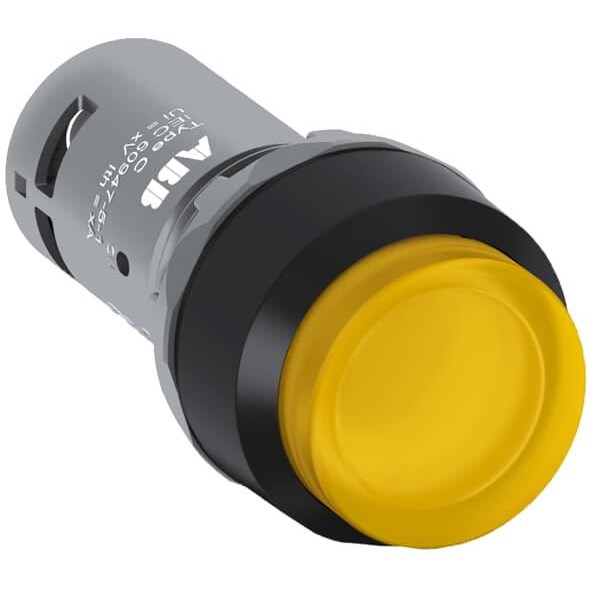

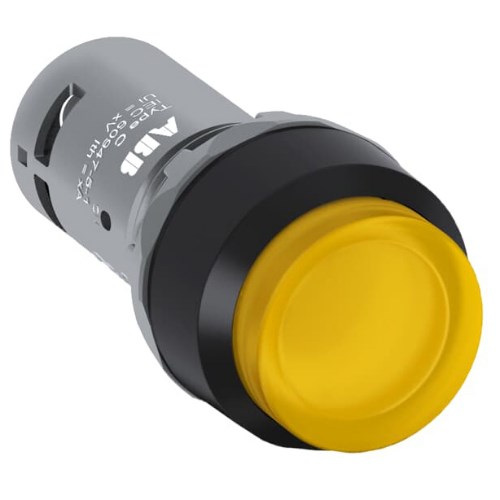

The CP Series pushbutton is a robust and reliable choice for industrial and commercial applications, designed to meet rigorous standards while providing ease of use and installation. With a rated voltage of 24 VAC/DC and frequency compatibility of 50/60 Hz, this illuminated pushbutton ensures consistent performance across various environments.
Measuring at a compact width and height of 30 mm each, with a depth of 55 mm, it fits seamlessly into control panels without occupying excessive space. The flush actuator type adds to its sleek design, while the yellow LED illumination offers clear visibility in operational settings.
Engineered for durability, the pushbutton boasts an impressive mechanical life of up to 0.5 million operations. Its contact configuration is set as normally open (1NO), suitable for momentary functions that require temporary circuit closure. Rated insulation voltage stands at 300 V with a rated impulse withstand voltage reaching up to 6 kV.
This product's degree of protection is notable; it features IP66, IP67, and IP69K ratings on the front side ensuring resistance against dust ingress and high-pressure water jets from any direction—ideal for demanding environments like washdown areas. The terminal side carries an IP20 rating offering basic protection against finger contact.
Constructed with user-friendly screw terminals capable of accommodating flexible or solid wires ranging from 0.5 to 1.5 sq-mm both with or without ferrules—installation is straightforward requiring only a wire stripping length of 6 mm. Tightening torque specification is set at an optimal value of 1 N-m ensuring secure connections.
The enclosure type aligns with NEMA standards: types 1,12,13 provide general-purpose indoor protection; types 3R offers outdoor protection against rain; types 4 &4X extend this to hose-directed water & corrosion-resistant conditions making it versatile across different settings including harsh industrial environments.
Operating within temperatures spanning from -25°C up to +70°C makes it suitable even under extreme thermal conditions while storage temperature ranges between -40°C to +85°C allowing flexibility during transportation or when not in active use.
Complying with international standards such as EN IEC60947-1,-5-1,-5-5 along with ENIEC60073 &60529 affirms its quality assurance credentials giving you peace-of-mind regarding safety compliance requirements globally recognized within electrical engineering sectors today.
