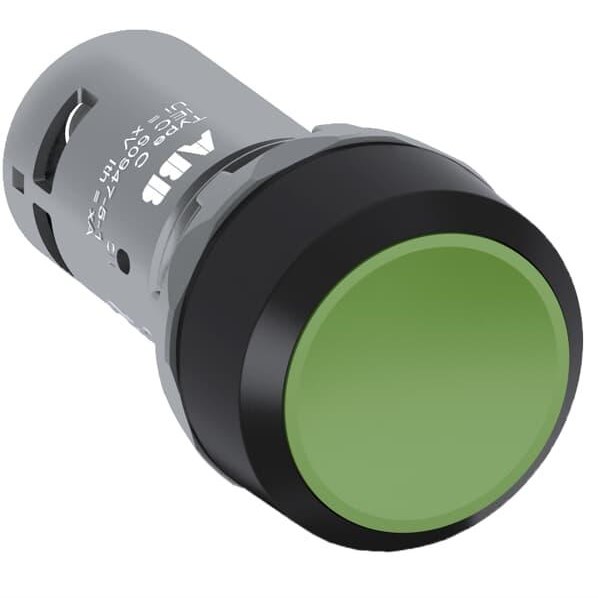

The CP Series device is a robust and reliable component designed for industrial and commercial applications, offering a blend of durability and precision. Its non-illuminated actuator type features a flush design, ensuring smooth integration into various control panels without compromising on accessibility or functionality.
With dimensions of 30 mm in width and height, and a depth of 55 mm, this compact unit is engineered to fit seamlessly into tight spaces while maintaining high performance standards. The product's operational temperature range from -25 to 70 degrees Celsius ensures consistent functionality in diverse environments, making it suitable for both indoor and outdoor use.
The device boasts an impressive degree of protection with IP66, IP67, and IP69K ratings at the front side, safeguarding against dust ingress and powerful water jets. Additionally, the IP20 rating at the terminal provides adequate protection during installation. This level of resilience makes it ideal for demanding conditions where exposure to harsh elements is common.
Meeting rigorous industry standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, and EN IEC 60529 further underlines its reliability. These certifications assure that the product adheres to essential safety requirements crucial for peace of mind in critical operations.
Equipped with screw terminals that support flexible connections (with or without ferrules) ranging from 0.5 to 1.5 square millimeters in size—both solid or stranded—the CP Series offers versatile connectivity options tailored to your wiring needs. The wire stripping length is set at a convenient 6 mm for ease during installation.
Engineered with a rated insulation voltage of up to 300 V and capable of handling thermal currents up to 5 A, this device efficiently manages electrical load demands typical in industrial settings. Its mechanical life expectancy stands at half a million operations—a testament to its longevity even under frequent use.
The contact configuration includes one normally open (NO) plus one normally closed (NC) setup which supports varied circuit requirements effectively. Withstanding impulse voltages up to 6 kV adds another layer of robustness against transient overvoltages often encountered in power systems.
Designed with user safety as priority through maintained function operation mode alongside NEMA enclosure types including NEMA Type:1/12/13/3R/4/4X—it ensures protection against environmental hazards like rain or corrosive agents enhancing operational integrity over time while keeping maintenance minimalistic due largely thanks due partly owing also because being lightweight weighing only about twenty-two grams thereby reducing strain when mounting onto equipment surfaces wherever necessary possible given specific circumstances arise needing attention accordingly
In summary; whether you're upgrading existing infrastructure deploying new installations alike rest assured knowing selected choice aligns perfectly technical specifications required achieve desired outcomes efficiently reliably every step way!
