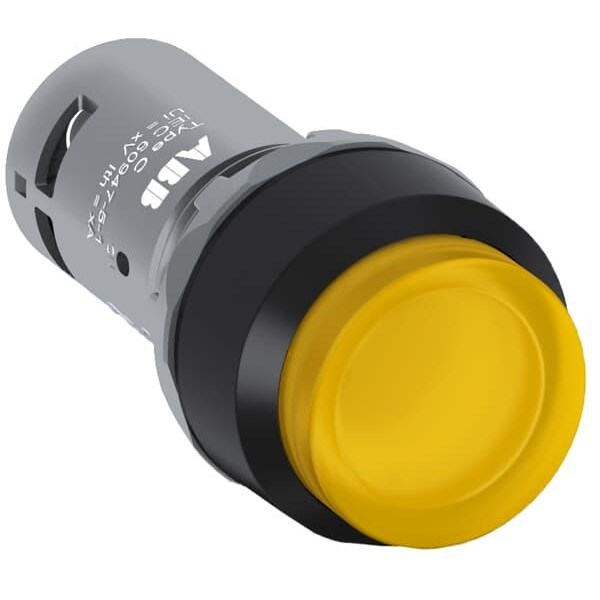

The CP series offers a versatile and reliable illuminated actuator designed for industrial and commercial applications. With a rated voltage of 24 VAC/DC and operating frequencies of 50/60 Hz, this component is engineered to meet the demands of varied electrical environments. Its compact dimensions—30 mm in width, 30 mm in height, and 55 mm in depth—make it suitable for installations where space is at a premium.
This product stands out with its robust degree of protection: IP66, IP67, and IP69K at the front, ensuring resistance against dust ingress and powerful water jets. The terminals are protected up to IP20. Additionally, it meets multiple international standards including EN IEC 60947-1 and EN IEC 60529 which underscores its reliability.
Designed to withstand operational temperatures ranging from -25 to 70 degrees Celsius, this device can handle extreme conditions without compromising performance. It also boasts an impressive mechanical life of up to half a million operations, making it ideal for applications that require frequent use.
The actuator features a flush design with an easy-to-use screw terminal type connection that allows for straightforward installation. The tightening torque is specified at 1 N-m ensuring secure connections every time. For wiring flexibility, it accommodates various types: flexible with ferrule or insulated ferrule as well as solid wires ranging from 0.5 to 1.5 square millimeters.
Safety is paramount; hence the product includes a rated impulse withstand voltage of up to 6 kV and a rated insulation voltage of 300 V providing peace of mind during operation under different power conditions. The contact configuration is set as normally open (1NO), which suits many standard control circuits.
Adding visual clarity during operation is the yellow LED lamp illumination—a feature that ensures visibility even in dimly lit environments while consuming minimal energy due to its efficient LED technology.
With an enclosure type meeting NEMA standards (1,12,13,3R,4,and4X), this product provides excellent protection against external elements like corrosion or moisture—making it suitable for both indoor and outdoor uses across diverse industries such as manufacturing plants or commercial facilities.
Weighing just 0.025 kg yet packed with features like maintained function capability alongside thermal current rating at five amps—it’s clear why professionals seeking durability coupled with high performance would consider integrating this into their systems confidently.
For those looking into storage options prior installation—the device remains stable between -40°C up till +85°C ensuring longevity beyond active service periods thanks largely due its quality plastic bezel material construction which adds another layer durability against wear tear over time thus offering value investment long term perspective.
