Product Code: MP3-10B

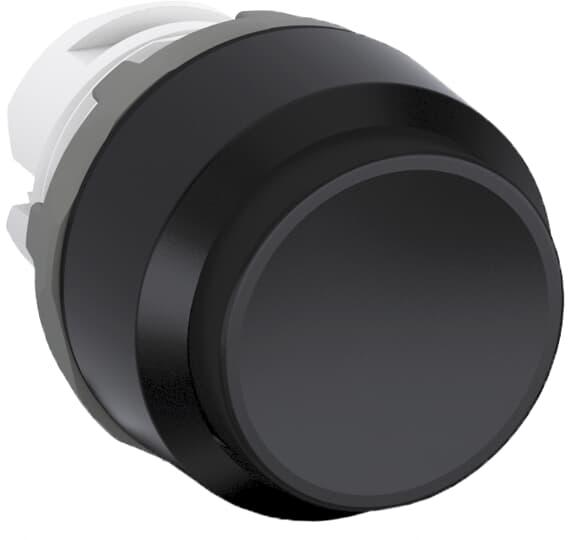

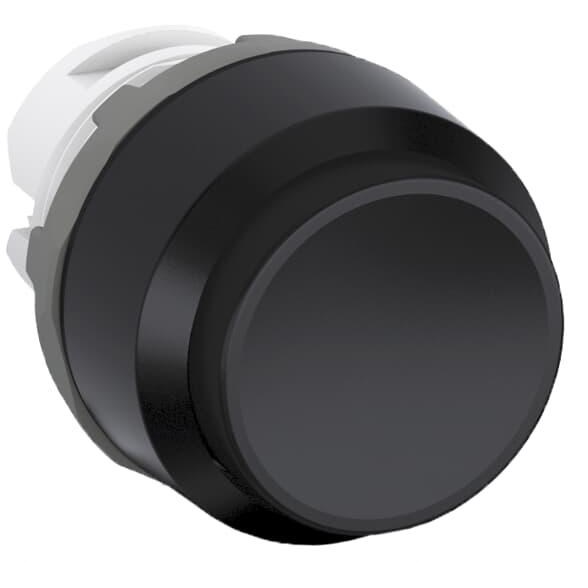

Non-illuminated, black pushbutton with extended actuator
Compact size: 29x29 mm face, 39 mm depth
Durable IP66 front protection for harsh environments
High mechanical life of 2 million operations
Wide operating temp range: -25 to 70°C

Specifications

Dimensions (mm)	29W x 29H x 39D
Operational Temperature Range (°C)	-25 to 70
Weight (kg)	0.012
Storage Temperature Range (°C)	-40 to 85
Enclosure Type (NEMA)	Type1, Type12, Type13, Type3R, Type4, Type4X
Product Type	Pushbutton
Brand	ABB
Actuator Type	Extended
Bezel Colour	Black
Bezel Material	Plastic
Bezel Type	Black Plastic
Button Colour	Black
Colour	Black
Degree of Protection	IP66 Front
Depth	39 mm
Enclosure Type	NEMA 1, 12, 13, 3R, 4, 4X
Function	Momentary
Height	29 mm
Illumination	Non-Illuminated
Includes	Holder and Contact Block are not included
Material	Bezel: Plastic
Mechanical Life	2 million Operations
Mode of Operation	Momentary
Operational Temperature	-25 to 70 deg C
Range	Modular Plastic
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Storage Temperature	-40 to 85 deg C
Terminal Type	Screw
Weight	0.012 kg
Width	29 mm

Description

This is a non-illuminated momentary extended pushbutton. It is part of the black plastic modular plastic range and does not come with a contact block. The front of the pushbutton has an IP66 rating.
