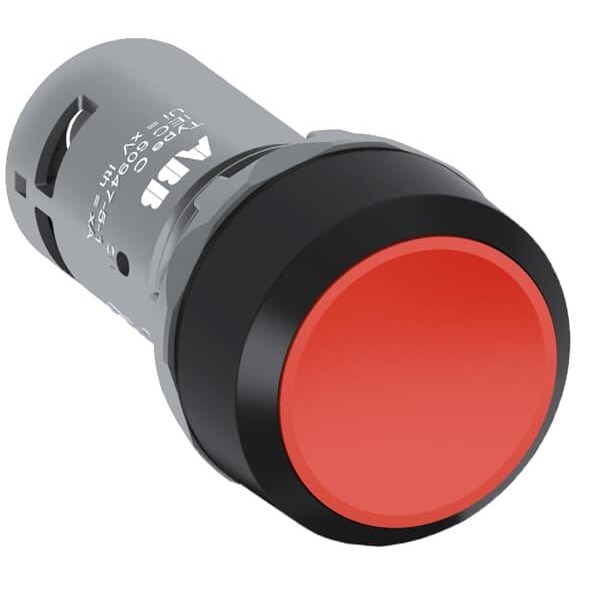

The CP series product is a robust and reliable industrial component engineered to meet the demands of various commercial applications. This non-illuminated device features a compact design with dimensions of 30 mm in width and height, and 55 mm in depth, making it an excellent choice for space-constrained environments.
Operating efficiently within a frequency range of 50/60 Hz, this product ensures versatile compatibility across different electrical systems. The operational temperature ranges from -25 to 70 degrees Celsius, allowing it to perform consistently under varying environmental conditions. Furthermore, its storage temperature capacity extends from -40 to 85 degrees Celsius, ensuring safe handling and longevity when not in use.
A significant feature is its high degree of protection: IP66, IP67, IP69K on the front side and IP20 at the terminal. This level of ingress protection makes it suitable for harsh environments where dust and water resistance are crucial. It also complies with several international standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, and EN IEC 60529.
The device supports a rated insulation voltage of up to 300 V and can withstand impulse voltages of up to 6 kV. Its contact configuration is designed as Normally Open (1NO), which is ideal for momentary functions requiring temporary circuit closure upon actuation.
From a mechanical perspective, the actuator type is flush with a red button color set against a black plastic bezel material—aesthetic yet functional attributes that enhance visibility without compromising durability. The enclosure meets NEMA ratings including types 1, 12, 13, as well as outdoor-friendly ratings like types 3R, 4X—ensuring wide-ranging applicability from indoor control panels to outdoor installations exposed to weather elements.
Connection integrity is maintained through screw terminals capable of accommodating flexible wires with ferrules or solid wires ranging from sizes of half to one-and-a-half square millimeters. With wire stripping length set at six millimeters and tightening torque specified at one Newton-meter (N-m), installation becomes straightforward while securing optimal connectivity.
Weighing just eighteen grams (0.018 kg) this lightweight unit does not compromise on performance—it carries a rated thermal current capacity up five amperes (A). These specifications make this component notably efficient for energy management tasks or automation processes requiring quick response times coupled with dependable operation over prolonged periods.
In summary if you're seeking an industrial-grade solution that combines safety reliability ease-of-installation along with compliance across multiple standards then look no further than this offering within our CP series lineup tailored precisely towards meeting your technical needs without unnecessary complexities often associated elsewhere in similar products available today!
