When selecting components for industrial and commercial applications, the focus is on reliability, compliance with standards, and suitability for specific technical requirements. This product from the CP series is designed to meet such demands with its robust features and adherence to international standards.
This non-illuminated device operates efficiently within a rated frequency of 50/60 Hz. Its compact dimensions—30 mm in width and height, along with a depth of 55 mm—make it suitable for installations where space is at a premium. With an operational temperature range from -25 to 70 degrees Celsius, it can withstand various environmental conditions typical in industrial settings.
The device ensures high protection levels with an IP66, IP67, and IP69K rating on the front side, making it resistant to dust ingress and powerful water jets. The terminal side has an IP20 rating which provides basic protection against finger contact. Additionally, it meets several stringent standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others ensuring compliance with global safety norms.
For ease of installation and maintenance, this product utilizes screw terminals that require a tightening torque of 1 N-m. It supports different wire types: flexible wires with or without ferrules as well as solid wires ranging from 0.5 to 1.5 square millimeters in cross-section. The wire stripping length required is just 6 mm which simplifies preparation during setup.
In terms of electrical specifications, the product boasts a rated insulation voltage of up to 300 V and can handle a rated thermal current of up to 5 A. Its rated impulse withstand voltage reaches up to an impressive 6 kV offering robustness against transient overvoltages.

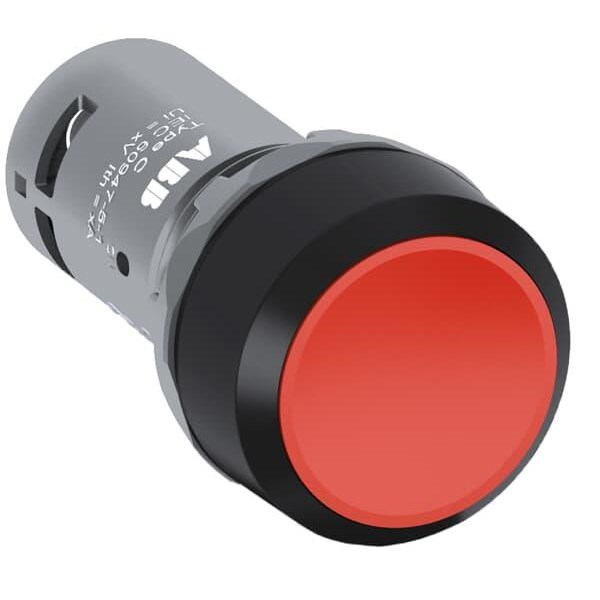

Designed for momentary function operations, this device features a flush actuator type which contributes to its sleek design while maintaining functionality. The red button paired with a black plastic bezel not only ensures visibility but also adds durability due to its material choice.
The enclosure compatibility includes NEMA types such as NEMA 1 through NEMA 4X providing versatility across different environmental conditions whether indoor or outdoor use is required.
Weighing only about 0.022 kg makes handling easy during installation or replacement tasks while storage temperatures range widely between -40 degrees Celsius up till +85 degrees Celsius allowing safe stocking under diverse warehouse conditions before deployment.
This combination of practical design elements alongside rigorous standard compliances makes this component ideal for those seeking reliable solutions tailored towards demanding technical environments prevalent within Australia’s industrial landscape.
