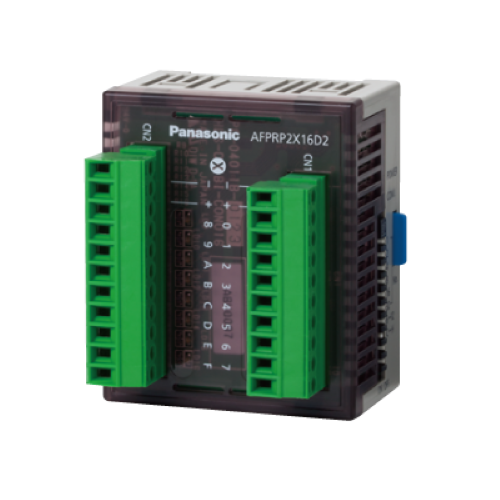

Panasonic AFPRP2X16D2 Remote I/O Unit 24VDC

Product Code: AFPRP2X16D2

  • Operates at 24 VDC, 170 mA
  • Screw type terminal block for easy connection
  • Withstands shocks up to 147 ms
  • Operates in humidity from 10% to 95%
  • Suitable for temperatures between 0 and 55°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

I/O Points 16
Input Voltage DC (V) 24
Operational Temperature Range (°C) 0 to 55
Net Weight (g) 75
Operating Humidity 10 to 95% RH
Impedance (?) 100
Resistance to Shock (m/s²) 147
Current Consumption (mA) 170
Product Type Remote I/O Unit
Brand PANASONIC
Connection Type Connector-type terminal block
Humidity 10-95%
Operational Temperature 0 to 55 deg C
Rated Current 170 mA
Rated Voltage 24 VDC
Shape Compact Type
Shock Resistance 147 ms
Terminal Type Screw Type Terminal Block
Weight 75 g
